Mushroom Sterilization Equipment for Relialbe Edible Mushroom Production
High-temperature steam sterilization equipment designed to treat mushroom bags, bottles, cultivation containers, and other heat-resistant materials before inoculation.
Steam Sterilization • Temperature Control
What Production Process Does Mushroom Sterilization Equipment Solve?
uring mushroom cultivation, raw materials such as sawdust, corn cob, straw and other agricultural materials provide nutrients for mushroom growth. However, these materials may also contain bacteria, molds and other microorganisms that compete with mushroom mycelium.
The sterilization process solves this problem by using saturated steam to heat cultivation materials under controlled temperature and pressure conditions.
Typical production workflow:
Raw Material Preparation → Mixing → Bag Filling → Sterilization → Cooling → Inoculation → Mushroom Cultivation
Disc Hammer Structure
Reduced contamination risk
Accurate temperature and pressure control
Shorter sterilization cycles
Lower energy consumption
Stable production quality for commercial mushroom farms
What Types of Mushroom Sterilization Equipment Are Available?
Mushroom sterilization equipment is available in different configurations for small-scale cultivation, commercial mushroom farms, and large industrial production.

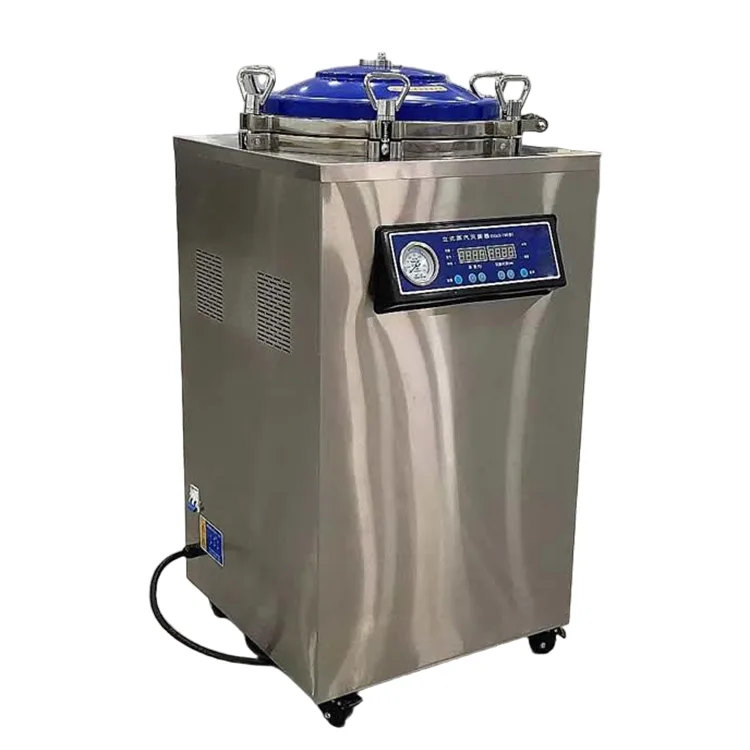

ASXH100B and ASXH150B Small Sterilizers

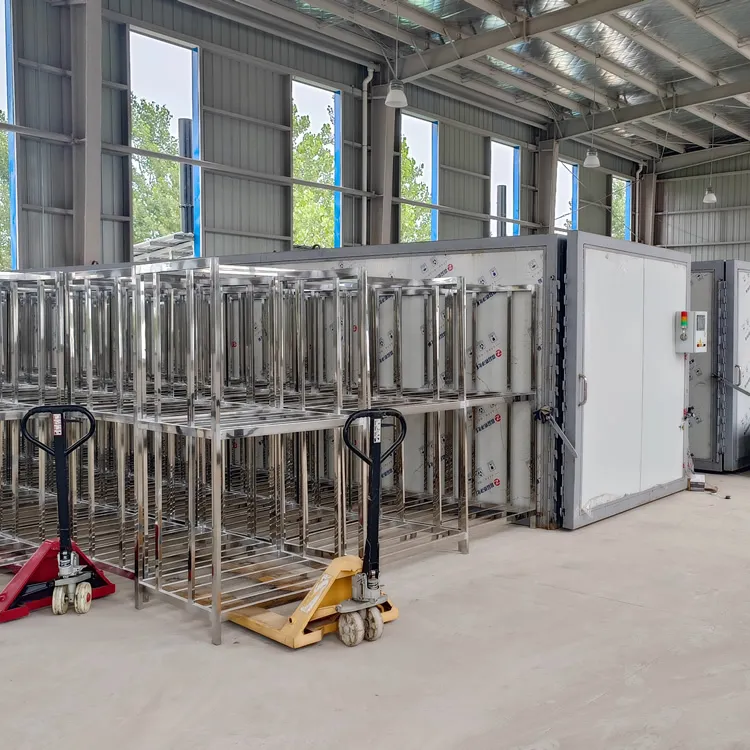

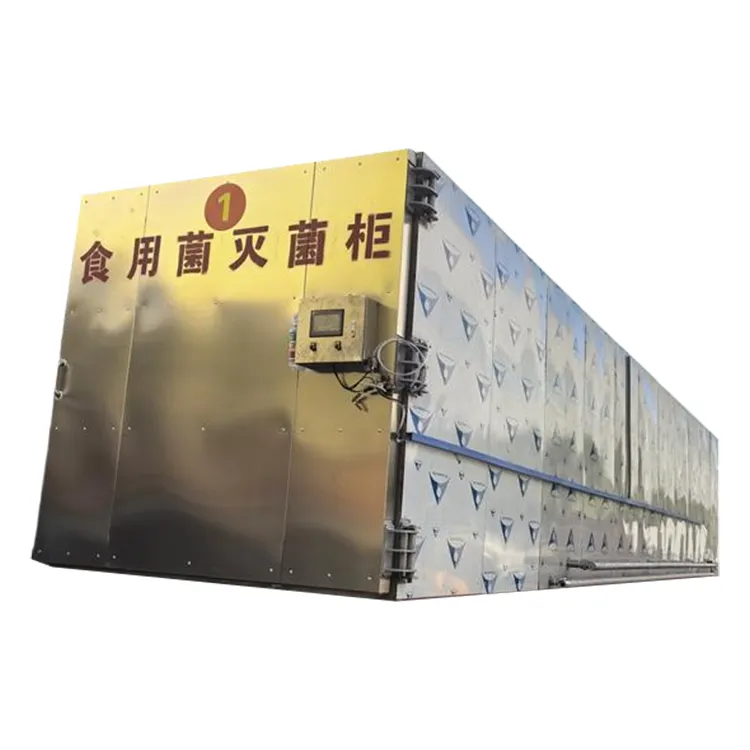

ASXH6200A Sterilization Chamber

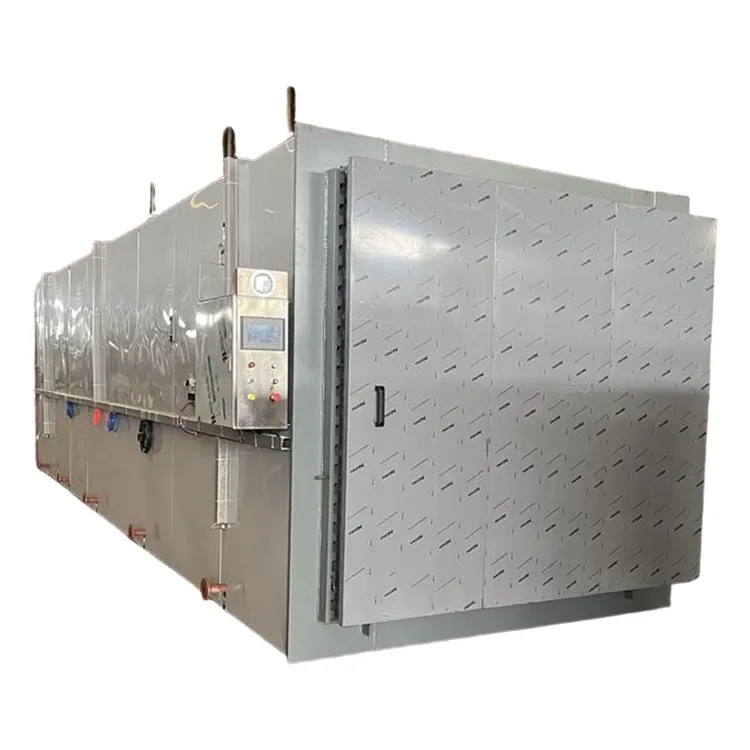

ASXH24CA High Pressure Sterilization Chamber
ASXH4CA Cylindrical Sterilizer
Available Mushroom Sterilization Equipment Configurations
Different mushroom farms require different sterilization solutions. Small growers may need compact automatic sterilizers, while industrial mushroom factories require large sterilization chambers with high capacity.
Small Mushroom Sterilizer
A compact sterilization solution with stainless steel construction, microcomputer control, digital display, and safety protection functions.
Main Specifications
- Capacity: 100 L
- Power: 4.5 kW
- Voltage: AC 220 V, 50 Hz
- Design Pressure: 0.25 MPa
- Design Temperature: 139°C
- Working Temperature: 134°C
- Chamber: φ450 × 650 mm
Cylindrical Sterilizer
A medium-scale steam sterilization system using steam displacement and automatic temperature and pressure control.
Main Specifications
- Capacity: 4 m³
- Dimensions: 4.7 × 1.7 × 2.1 m
- Power: 45 kW
- Design Temperature: 147°C
Large Sterilization Chamber
A large-capacity steam sterilization system designed for industrial mushroom production with efficient steam utilization and uniform sterilization.
Main Specifications
- Dimensions: 6,300 × 2,250 × 2,550 mm
- Weight: approximately 11 tons
The system is designed for large industrial mushroom production where higher processing capacity is required.
Which Mushroom Cultivation Applications Use These Sterilizers?
Mushroom sterilization equipment can be used for different edible mushroom cultivation processes involving bags, bottles, and other heat-resistant cultivation materials.
Oyster Mushroom Cultivation
Oyster mushroom cultivation can use sawdust, straw, and agricultural waste as substrate materials. Steam sterilization is used before inoculation.
Shiitake Mushroom Cultivation
Shiitake cultivation uses prepared substrate that requires sterilization before inoculation and subsequent mushroom growth.
Wood Ear Mushroom Cultivation
Wood ear mushroom production commonly uses bag cultivation methods, with steam sterilization applied before inoculation.
Other Mushroom Cultivation
The equipment can also be used for:
- King oyster mushroom cultivation
- Enoki mushroom cultivation
- Agaricus-related cultivation materials
- Laboratory mushroom strain preparation
How Should You Choose the Right Mushroom Sterilizer?
The selection of mushroom sterilization equipment mainly depends on production scale, substrate volume, and automation requirements.
01 — Small-Scale Sterilization
For small mushroom farms, laboratories, research centers, and small-scale cultivation:
100L Small Mushroom Sterilizer
Key characteristics:
- Compact configuration
- Small-batch sterilization
- Automatic control
- Flexible operation
02 — Commercial Batch Sterilization
For medium mushroom farms and commercial cultivation:
4m³ Cylindrical Sterilizer
Key characteristics:
- Larger batch capacity
- Steam displacement
- Automatic temperature and pressure management
- Commercial production configuration
03 — Industrial Mushroom Production
For large-scale mushroom factories:
Large Sterilization Chamber
Key characteristics:
- Large chamber
- Large-capacity steam system
- Efficient steam utilization
- Uniform sterilization
- Short sterilization cycles
Selection Factors
When selecting equipment, consider:
Production Scale → Substrate Volume → Chamber Capacity → Power Supply → Automation Requirements → Factory Layout
Connect Crushing Equipment with Your Substrate Production Line
The sterilization chamber length can be adjusted according to factory layout, while temperature, pressure and cycle settings can be configured based on different mushroom substrate formulas.
Whether for a small mushroom farm, commercial cultivation center or fully automated mushroom production factory, customized sterilization solutions can help customers build an efficient and reliable mushroom production process.
Customer Information Needed:
For equipment selection and configuration, customers should provide:
- Required chamber volume
- Substrate type
- Production capacity
- Factory space
- Power supply
- Steam source
- Required temperature and pressure
- Desired automation level
Tell Us About Your Mushroom Sterilization Requirements
Share your substrate type, production scale, required chamber volume, factory space, power supply, and sterilization requirements.
We can configure suitable mushroom sterilization equipment for small farms, commercial cultivation facilities, and large-scale mushroom production.
