Wood Sawdust Crusher for Mushroom Substrate Production

Wood Sawdust Crusher is a professional raw material processing machine designed for edible mushroom substrate preparation. It crushes wood logs, branches and other woody materials into uniform sawdust particles through a high-speed blade and hammer crushing system, helping mushroom farms efficiently produce suitable substrate materials while reducing manual labor and improving cultivation consistency.

The machine solves the important first-stage problem in mushroom cultivation: converting large wood materials into suitable sawdust for substrate mixing and mushroom bag production. With three models available, it can meet different production requirements from small mushroom farms to commercial substrate processing workshops.

Request a Quote

Wood Sawdust Crusher Key Specifications

The Wood Sawdust Crusher series adopts a disc hammer structure, equipped with replaceable screens and durable cutting components. It can process wood materials with different diameters and produce sawdust suitable for mushroom cultivation.

Model

Capacity

Applicable Material

Power

Main Shaft Speed

Material Diameter

Weight

Dimension

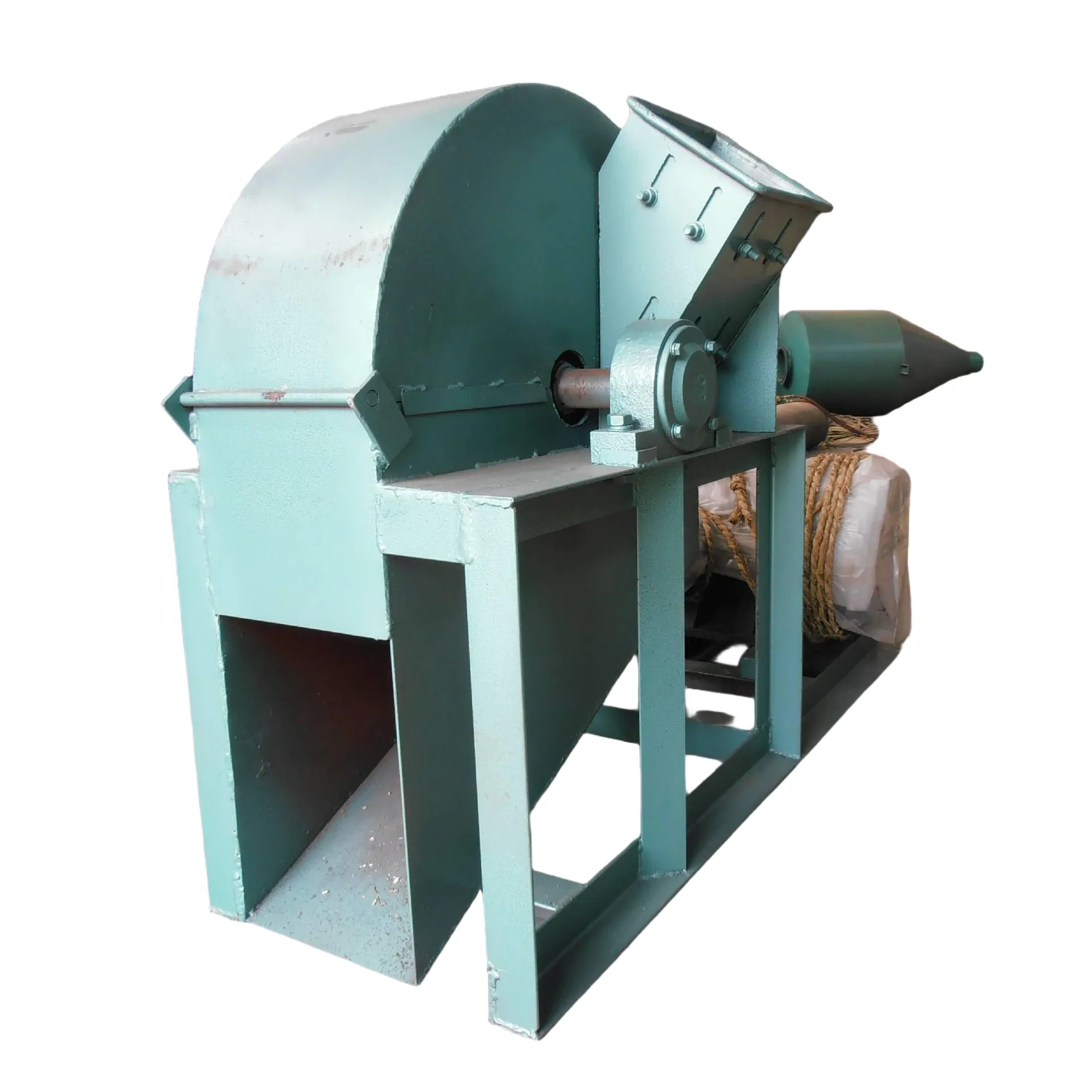

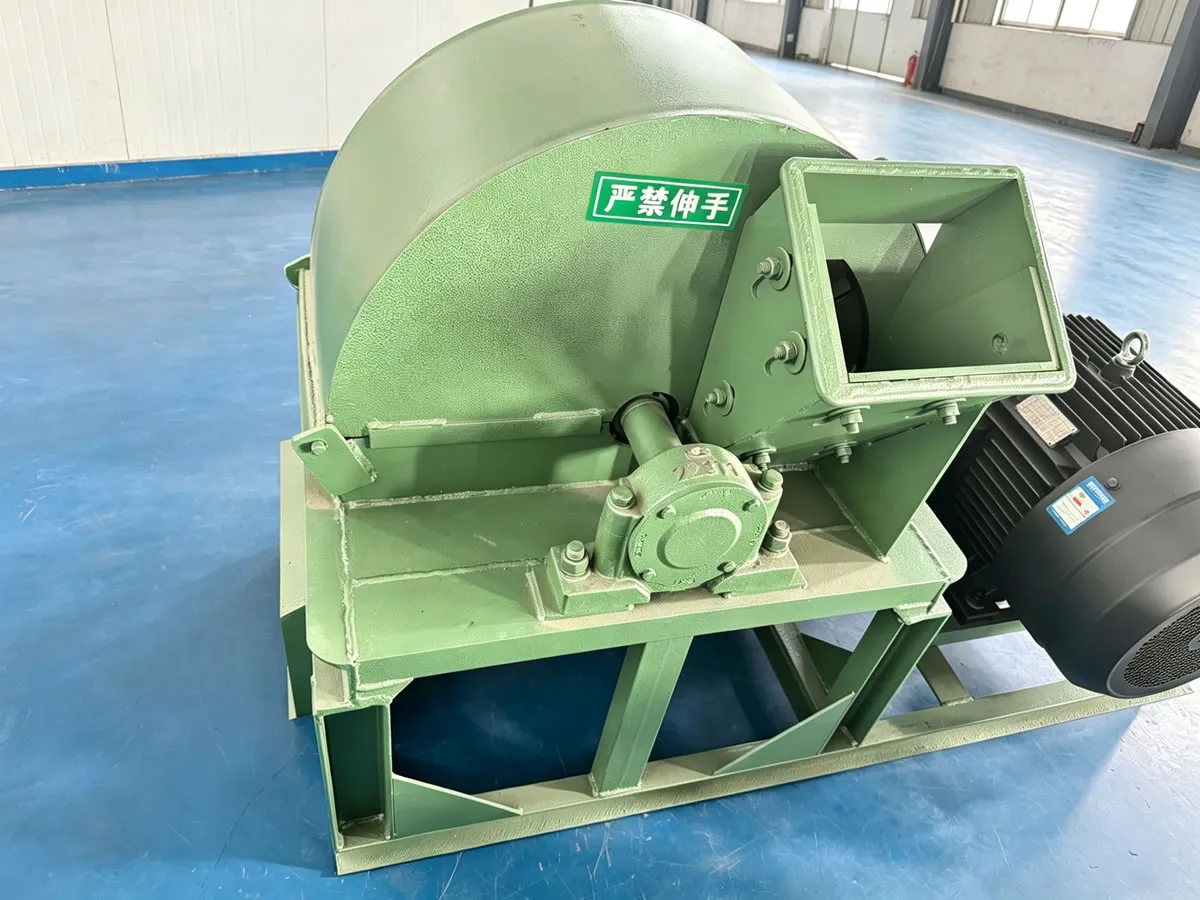

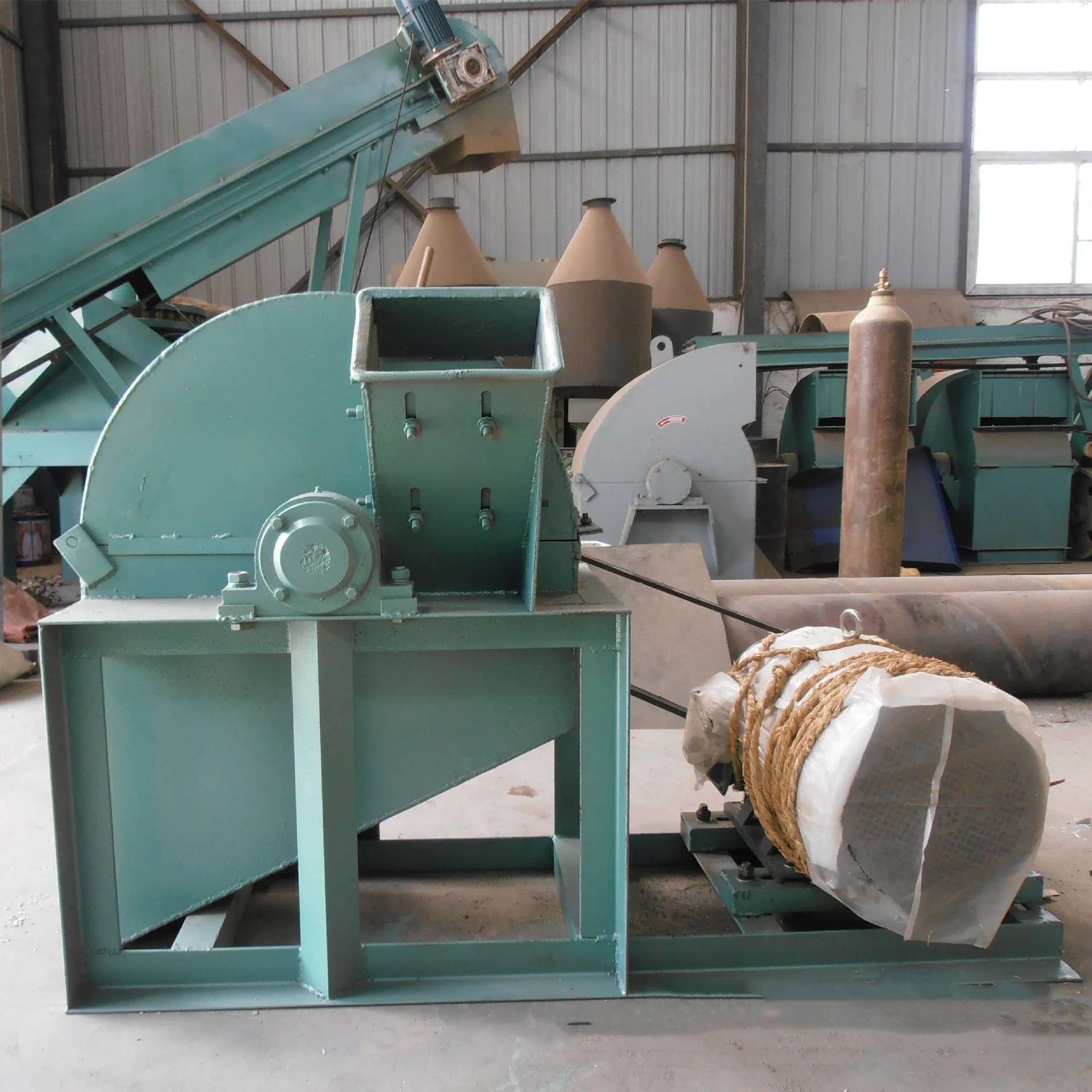

CRXH700A Wood Sawdust Crusher

700 kg/h

Mixed wood, logs

15 kW, 380V 50Hz

2800 rpm

≤120 mm

120 kg

650×650×780 mm

CRXH1000A Wood Sawdust Crusher

1 ton/h

Mixed wood, logs

18 kW, 380V 50Hz

2600 rpm

≤140 mm

160 kg

900×730×880 mm

CRXH1800A Wood Sawdust Crusher

1.8 ton/h

Mixed wood, logs

28 kW, 380V 50Hz

2200 rpm

≤180 mm

230 kg

1050×730×950 mm

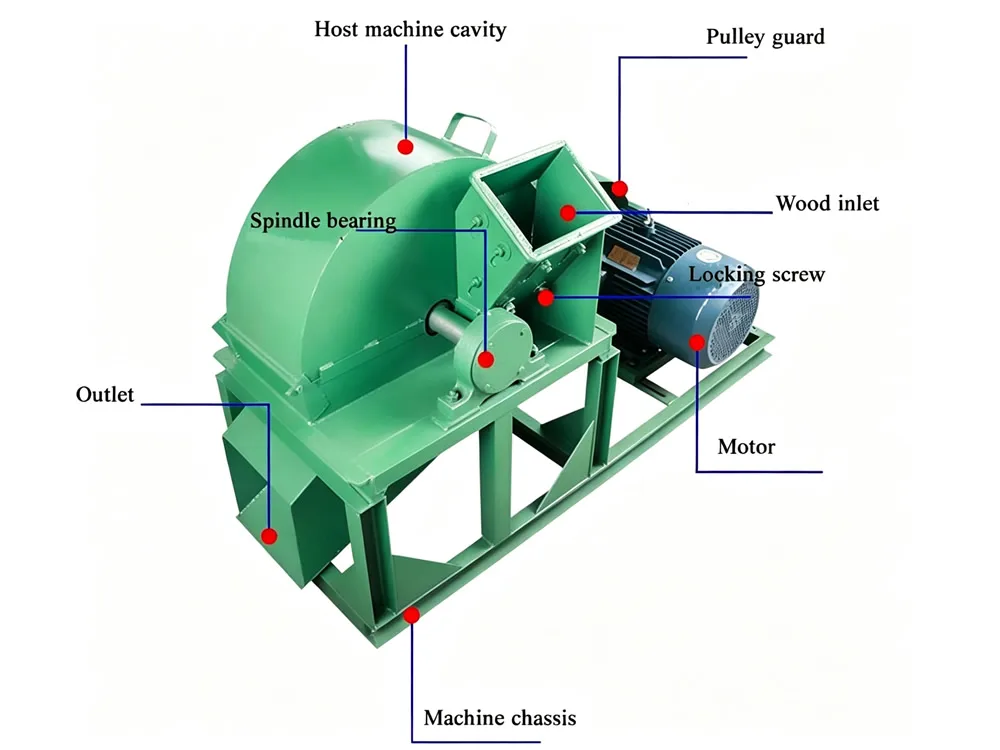

Main Structural Advantages

01
Disc hammer crushing structure for efficient wood processing
02
Replaceable screen design with mesh sizes from 8mm to 20mm
03
One-step cutting and crushing into finished sawdust
04
Steel plate construction for stable operation
05
Fixed knife and movable hammer design
06
Hammer direction can be adjusted and reused to extend service life

Wood Sawdust Crusher Working Principle

The machine converts woody materials into sawdust through feeding, cutting, crushing, screening and discharge.
01

Raw Material Feeding

Wood logs, branches or wood pieces enter the crushing chamber.

02

Cutting & Crushing

Rotating hammers and blades rapidly impact and cut the material.

03

Screening

Replaceable screens control sawdust particle size from 8–20 mm.

04

Sawdust Discharge

Processed sawdust exits for substrate mixing and further processing.

Wood Feeding → Crushing → Screening → Sawdust Collection

Maximum Feeding Diameter

CRXH700A
≤120 mm
CRXH1000A
≤140 mm
CRXH1800A
≤180 mm

Main Shaft Rotation

CRXH700A
2800 rpm
CRXH1000A
2600 rpm
CRXH1800A
 2200 rpm

Suitable Raw Materials and Mushroom Applications

Applicable Raw Materials

The Wood Sawdust Crusher is mainly used for woody biomass processing, including:
Hardwood logs
Softwood materials
Tree branches
Wood chips
Forestry waste
Agricultural wood waste

The processed sawdust has uniform particle size and good moisture absorption characteristics, making it suitable for mushroom substrate production.

Suitable Mushroom Cultivation

Shiitake Mushroom Cultivation
Shiitake mushroom commonly uses wood-based substrates. Freshly processed sawdust provides suitable structure and nutrition for mycelium growth.
Oyster Mushroom Cultivation
Oyster mushroom farms often use sawdust mixed with corn cob, straw and other agricultural materials. Uniform sawdust improves substrate mixing quality.
Wood Ear Mushroom Cultivation
Wood ear mushroom bag cultivation requires stable substrate structure. Proper sawdust particle size helps maintain moisture and air permeability.
Other Cultivated Mushrooms
Suitable for:
King oyster mushroom
Reishi mushroom
Other wood-loving fungi

Capacity / Production Scale

Different models are designed for different production scales.
production Scales Model Capacity Power Suitable for
Small and Medium Mushroom Farms CRXH700A 700 kg/h 15 kW Small mushroom farms, Family cultivation workshops, Small substrate preparation rooms
Commercial Mushroom Production CRXH1000A 1,000 kg/h 18 kW Suitable for medium-scale farms requiring continuous sawdust production
Industrial Mushroom Substrate Factories CRXH1800A 1,800 kg/h 28 kW Large mushroom factories, Commercial substrate suppliers

Integration With Mushroom Production Line

The Wood Sawdust Crusher is usually the first processing machine in a mushroom substrate production system.

Upstream Equipment

Wood collection system
Log cutting machine
Wood storage system

Downstream Equipment

After crushing, sawdust can be transferred to:
Mushroom Substrate Mixer
Mix sawdust with corn cob, straw, water and nutritional additives.
Mushroom Bagging Machine
Automatically fill mixed substrate into mushroom bags.
Mushroom Sterilization Equipment
Sterilize filled bags before inoculation.
Complete Production Flow:

Wood Material → Wood Sawdust Crusher → Mushroom Substrate Mixer → Mushroom Bagging Machine → Sterilizer → Mushroom Growing Room

Automation Options

The standard machine uses manual feeding operation. For higher production efficiency, it can be integrated with:

Feeding conveyors
Storage systems
Dust collection systems
Automatic substrate production lines

Automation level can be customized according to customer production capacity.

Service & FAQ

Installation & Service

Installation Support
  • Equipment installation guidance
  • Production line layout suggestions
  • Machine commissioning assistance
Operator Training

Training includes:

  • Machine operation methods
  • Safety instructions
  • Daily maintenance procedures
Spare Parts Supply



Available spare parts:

  • Crushing hammers
  • Screens
  • Blades
  • Belts
  • Electrical components
Spare Parts Supply
  • Remote operation guidance
  • Troubleshooting support
  • Production optimization suggestions
Technical Support
  • Crushing hammers
  • Screens
  • Blades
  • Belts
  • Electrical components
After-Sales Service

  • Long-term technical assistance helps customers maintain stable production efficiency.

FAQ

 What materials can the Wood Sawdust Crusher process?
It can process wood logs, branches, hardwood, softwood and other woody materials used for mushroom substrate production.
 What mushroom varieties can use the produced sawdust?
The sawdust is suitable for shiitake mushroom, oyster mushroom, wood ear mushroom, reishi mushroom and other wood-based cultivated fungi.
What is the difference between CRXH700A, CRXH1000A and CRXH1800A?
The main differences are production capacity and maximum feeding diameter: CRXH700A: 700 kg/h, ≤120mm wood CRXH1000A: 1000 kg/h, ≤140mm wood CRXH1800A: 1800 kg/h, ≤180mm wood
Can the sawdust particle size be adjusted?
Yes. The machine uses replaceable screens with different mesh sizes. Customers can choose 8mm-20mm screens according to substrate requirements.
 Can the machine use diesel power instead of electricity?
Yes. The equipment can be configured with either an electric motor or diesel engine according to customer requirements and local power conditions.
 Can this machine be connected with a complete mushroom production line?
Yes. It can be integrated with substrate mixers, bagging machines, sterilizers and other mushroom cultivation equipment.
 What maintenance does the crusher require?
Regular inspection and replacement of wear parts such as hammers, screens and blades are recommended. Proper maintenance can extend equipment service life and maintain crushing efficiency.
