Straw Crusher / Shredder for Mushroom Substrate Preparation
Straw Crusher / Shredder is professional raw material processing equipment designed for edible mushroom substrate production. It cuts and shreds agricultural waste such as rice straw, wheat straw and corn stalks into suitable particle sizes, improving substrate uniformity, reducing manual preparation work and providing stable raw materials for oyster mushroom, shiitake mushroom and other bag cultivation systems.
The equipment adopts a blade wheel structure with high-speed rotating cutting components. Different models are available according to production capacity requirements, from small farms to commercial mushroom factories. The crushed straw can be directly used for substrate mixing after processing, helping mushroom growers build a more efficient production workflow.
Key Specifications
|
Model |
Power |
Capacity |
Main Shaft Speed |
Weight |
Dimension |
Application |
|

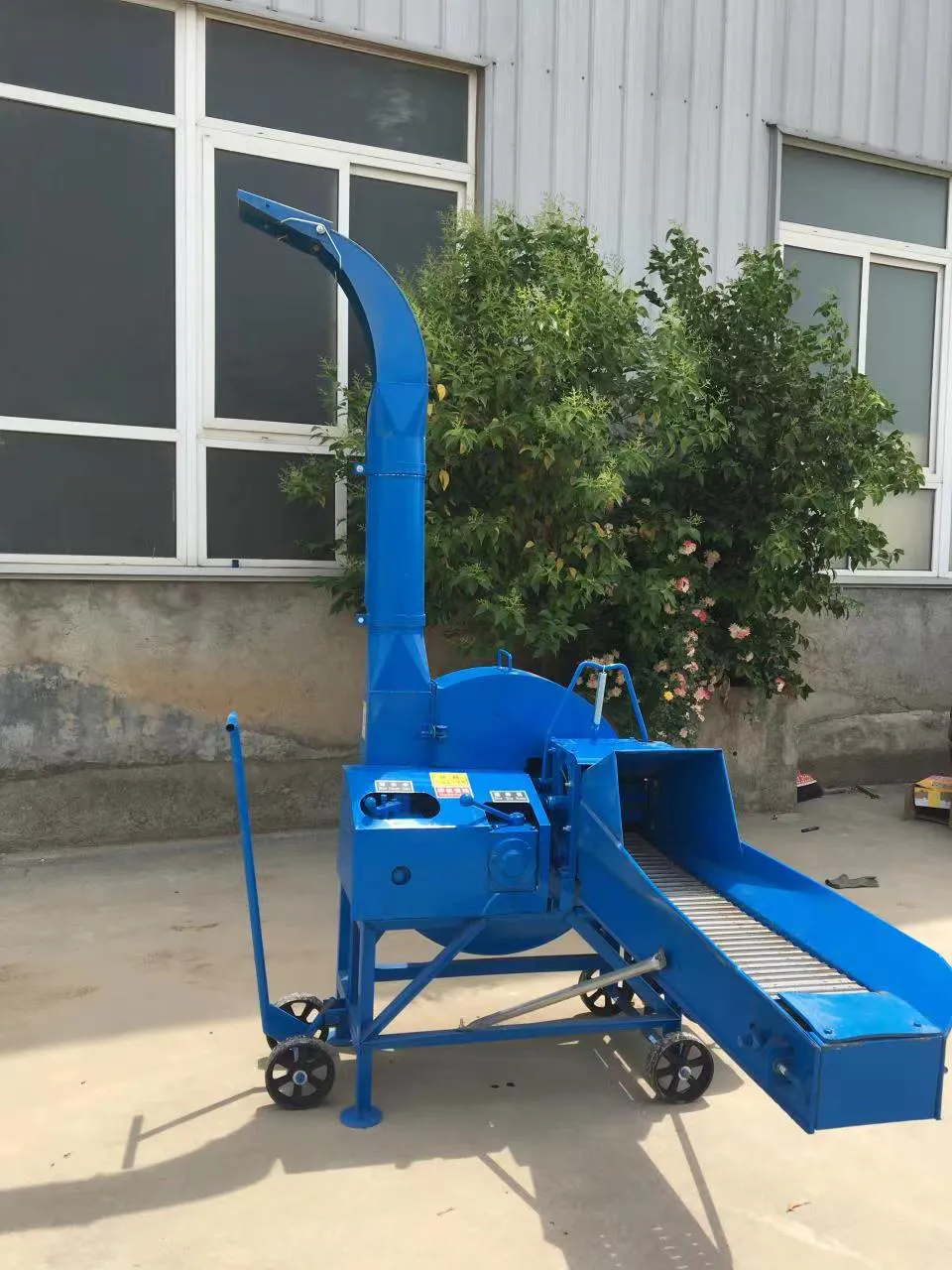

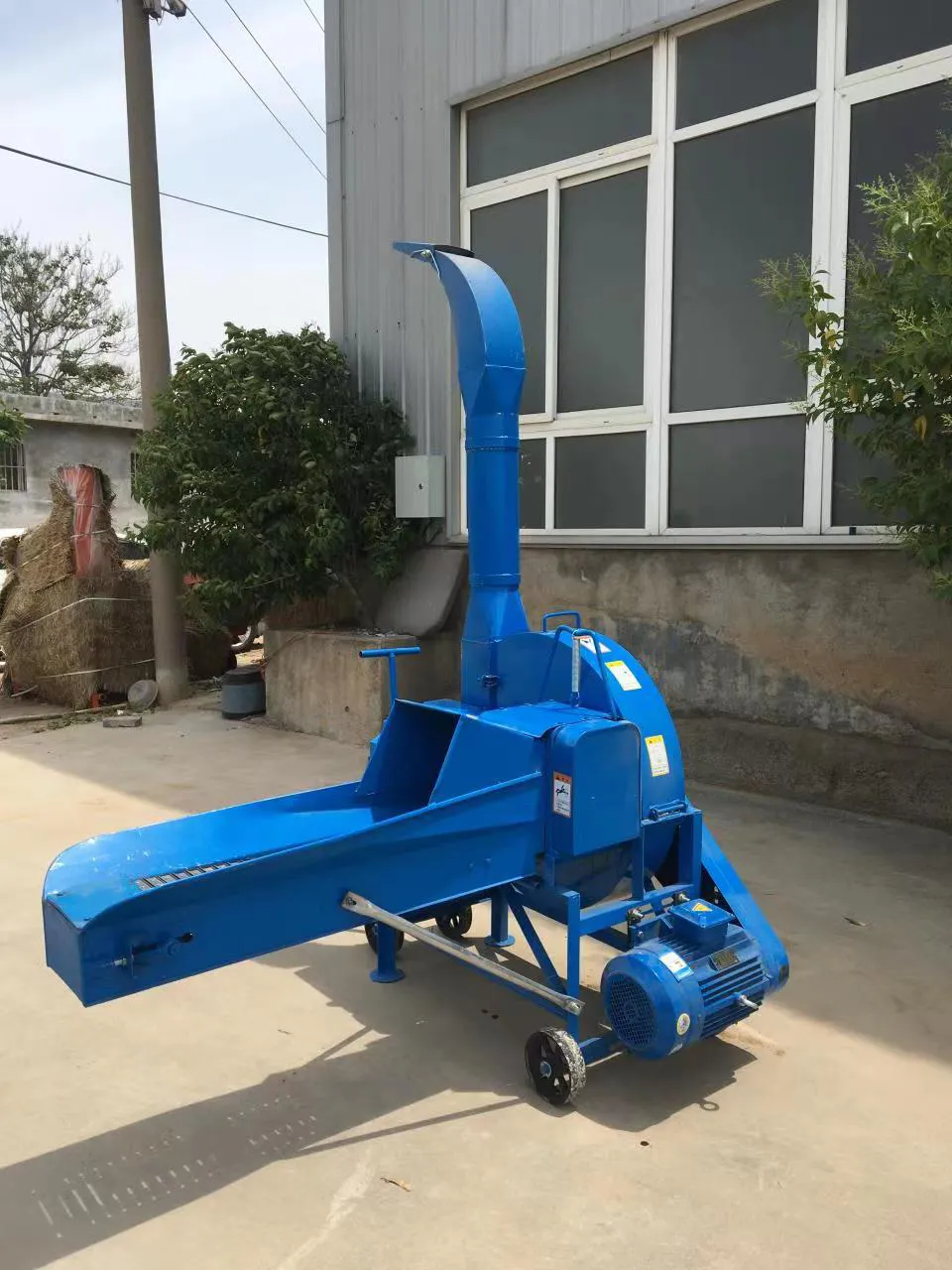

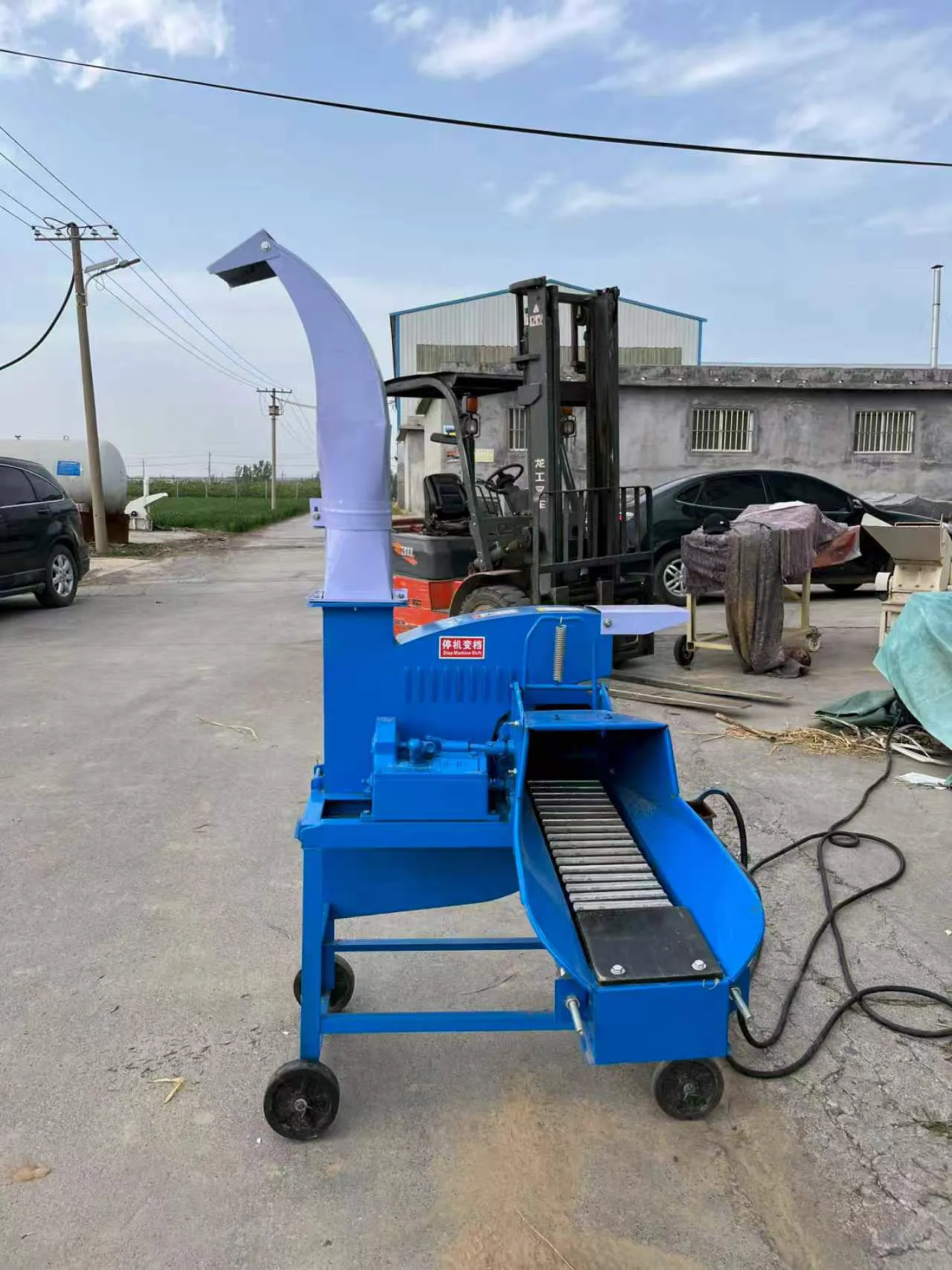

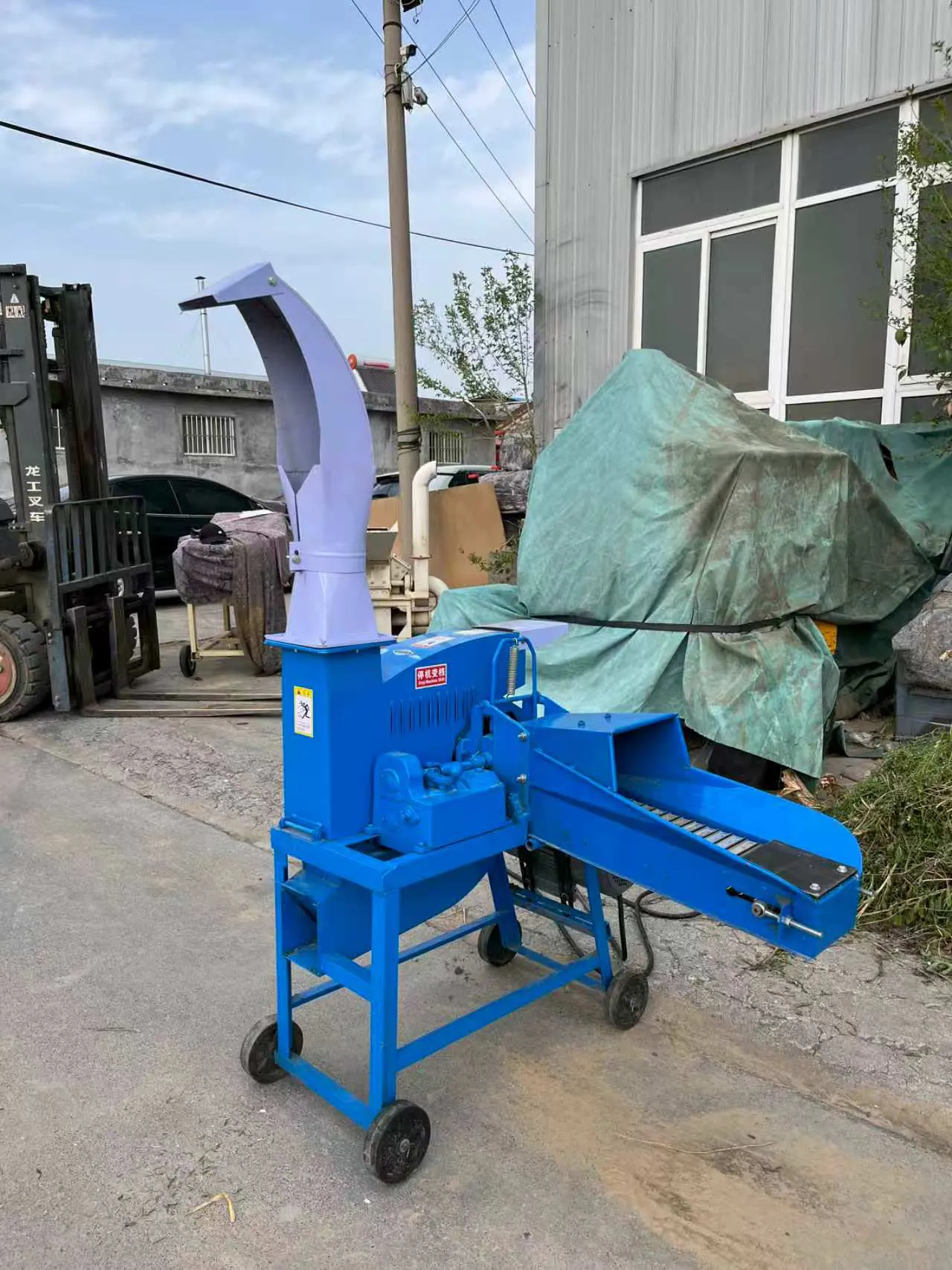

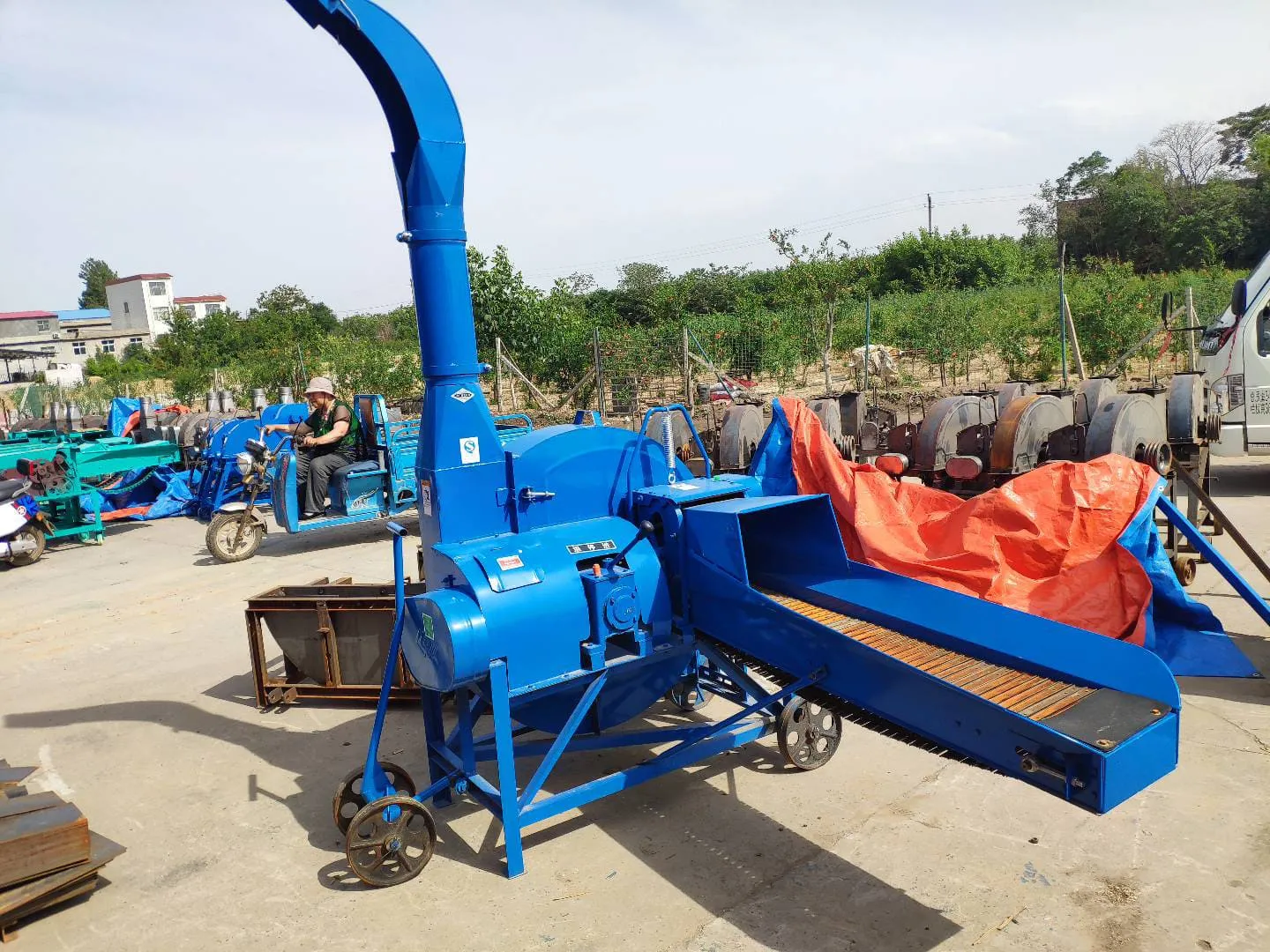

CRXH400A Straw Crusher |
1.5 kW |
400 kg/h |
900 rpm |
50 kg |
600×400×700 mm |
Small mushroom farms, laboratory production |
|
CRXH800A Straw Crusher |
2.2 kW |
800 kg/h |
900 rpm |
85 kg |
940×500×950 mm |
Medium-scale substrate preparation |
|
CRXH1500A Straw Crusher |
4 kW |
1500 kg/h |
900 rpm |
130 kg |
1050×1880×2290 mm |
Commercial mushroom production lines |
Main Structural Features
The blade-type crushing structure is especially suitable for fibrous materials such as straw, where cutting and shredding performance is more important than fine grinding. Similar straw crusher systems are commonly used to process wheat straw, rice straw and corn stalks into mushroom substrate materials.
Working Principle
Raw Material Feeding
Dry straw materials such as rice straw, wheat straw or corn stalks are manually or automatically fed into the machine inlet.
For larger production systems, feeding conveyors can be added to improve continuous operation and reduce labor requirements.
High-Speed Cutting and Shredding
After entering the crushing chamber, the material contacts the rotating blade wheel.
The high-speed rotating blades cut the long fibers into shorter pieces. The repeated cutting action helps produce more uniform straw particles suitable for mushroom substrate preparation.
Particle Size Adjustment
The processed material size depends on:
- Blade design
- Rotation speed
- Raw material condition
- Customer requirements
Different particle sizes can be prepared for different mushroom cultivation formulas.
Material Discharge
The crushed straw is discharged from the outlet and transferred to the next production process.
Suitable Raw Materials and Mushroom Applications
Applicable Raw Materials
After crushing, these materials become easier to mix with other substrate components such as sawdust, corn cob particles and nutritional additives.
Suitable Mushroom Cultivation
The processed straw can be used for many edible mushroom cultivation systems, including:
Capacity / Production Scale & Automation Level
| production Scales | Model | Capacity | Power | Suitable for |
|---|---|---|---|---|
| Small-Scale Mushroom Farms | CRXH400A | 400 kg/h | 1.5kW | This model is suitable for small growers, family mushroom farms and areas where production volume is limited. |
| Medium Mushroom Production | CRXH800A | 800 kg/h | 2.2 kW | This model provides higher processing efficiency while maintaining a compact structure. It is suitable for farms producing several hundred kilograms of substrate materials per hour. |
| Commercial Mushroom Factories | CRXH1500A | 1500 kg/h | 4 kW | This model is suitable for commercial substrate preparation workshops requiring continuous raw material processing. |
Automation levels can be upgraded according to production requirements:
Manual feeding for small farms
Conveyor feeding for continuous operation
Connection with mixing and bagging systems for complete mushroom substrate production lines
Integration With Mushroom Production Line
Upstream Equipment
Straw collection and storage systems
Material feeding conveyors
Raw material sorting equipment
Downstream Equipment
Service & FAQ
Installation & Service
To support overseas mushroom farms, installation and service options can include:
- Equipment installation guidance
- Machine commissioning assistance
- Production line layout suggestions
- Machine operation training
- Safety operation instructions
- Daily maintenance guidance
Available spare parts include:
- Cutting blades
- Wear parts
- Belts
- Electrical components
- Remote troubleshooting
- Operation guidance
- Production optimization suggestions
Professional technical support can help customers maintain stable equipment operation during long-term mushroom production.
FAQ
The main difference is production capacity:
CRXH400A: 400 kg/h for small production
CRXH800A: 800 kg/h for medium farms
CRXH1500A: 1500 kg/h for commercial production
