Efficient Mixing Equipment for Edible Mushroom Cultivation
Mushroom Substrate Mixer is an essential piece of equipment for edible mushroom production, designed to evenly mix raw materials, water, and nutritional additives before bag filling and sterilization. With a durable mixing structure, adjustable operation time, and efficient blending performance, it solves common problems in mushroom cultivation such as uneven moisture distribution, inconsistent substrate quality, and high labor costs caused by manual mixing.
The machine adopts a horizontal mixing structure with strong mixing blades, ensuring that materials such as sawdust, corn cob, straw, and other agricultural residues can be fully mixed with water and additives. It is widely used in commercial mushroom farms, substrate preparation workshops, and automated mushroom production lines.
Key Specifications of Mushroom Substrate Mixer
|
Model |
Equipment Type |
Main Specifications |
Features |
|

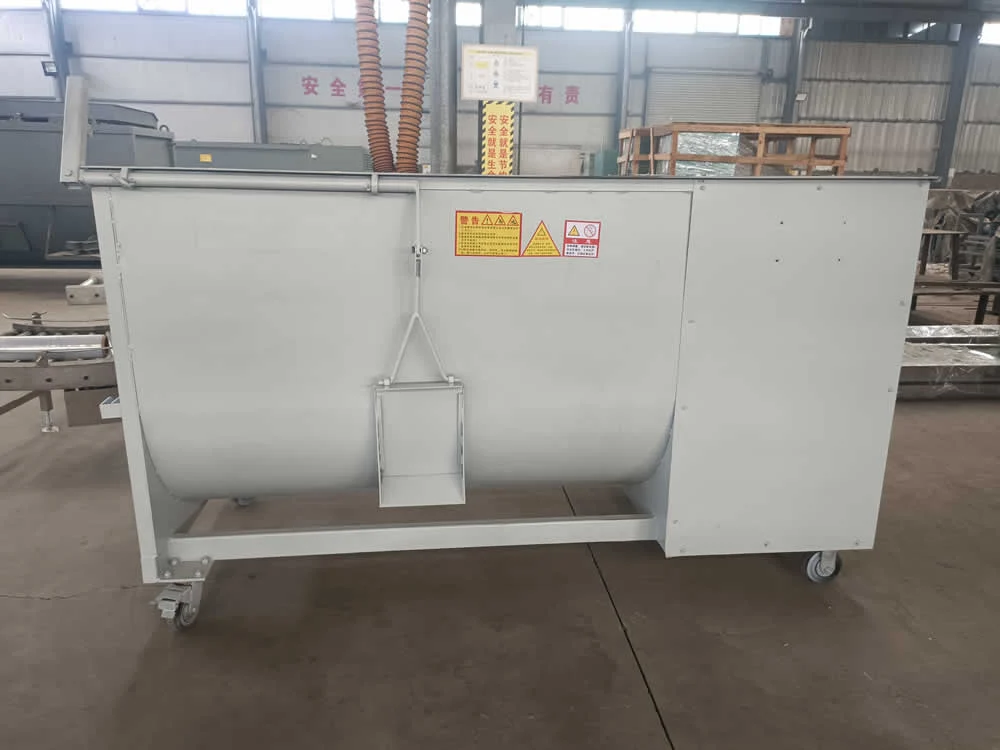

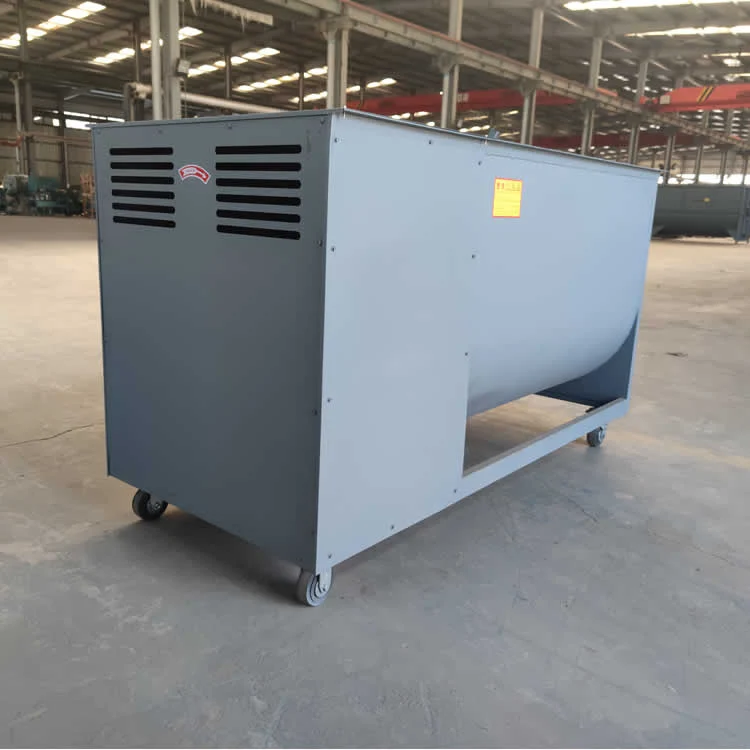

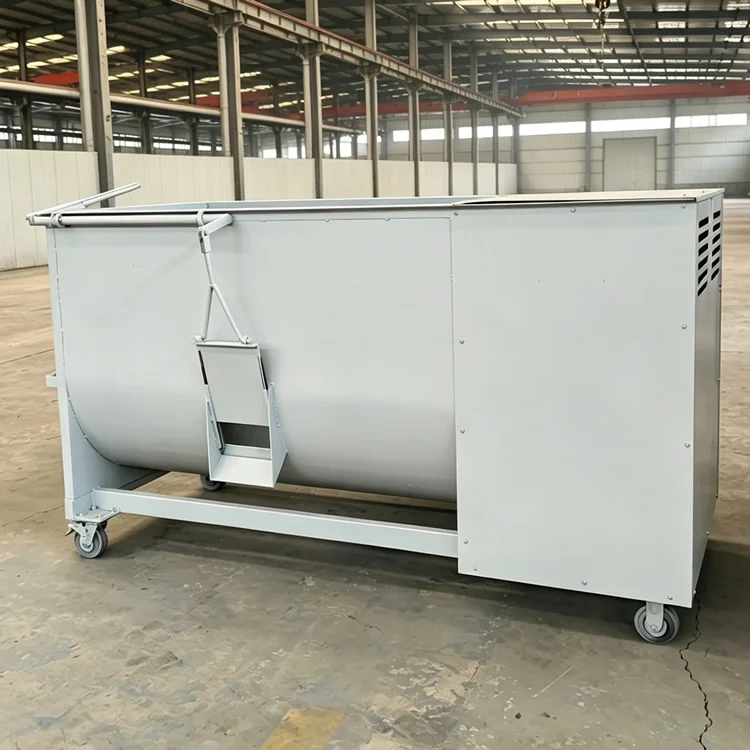

MIXH200A |

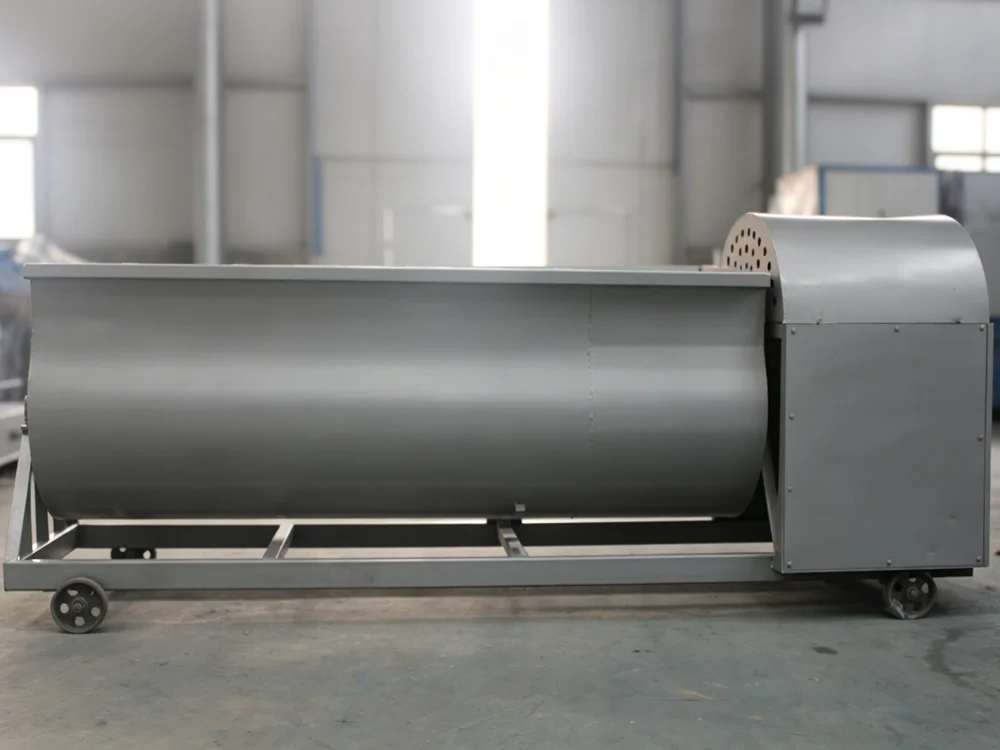

Flip-type Substrate Mixer |
Power: 4kw / 380V Capacity: 200kg/batch Weight: 380kg Dimension: 2750×900×1100mm |

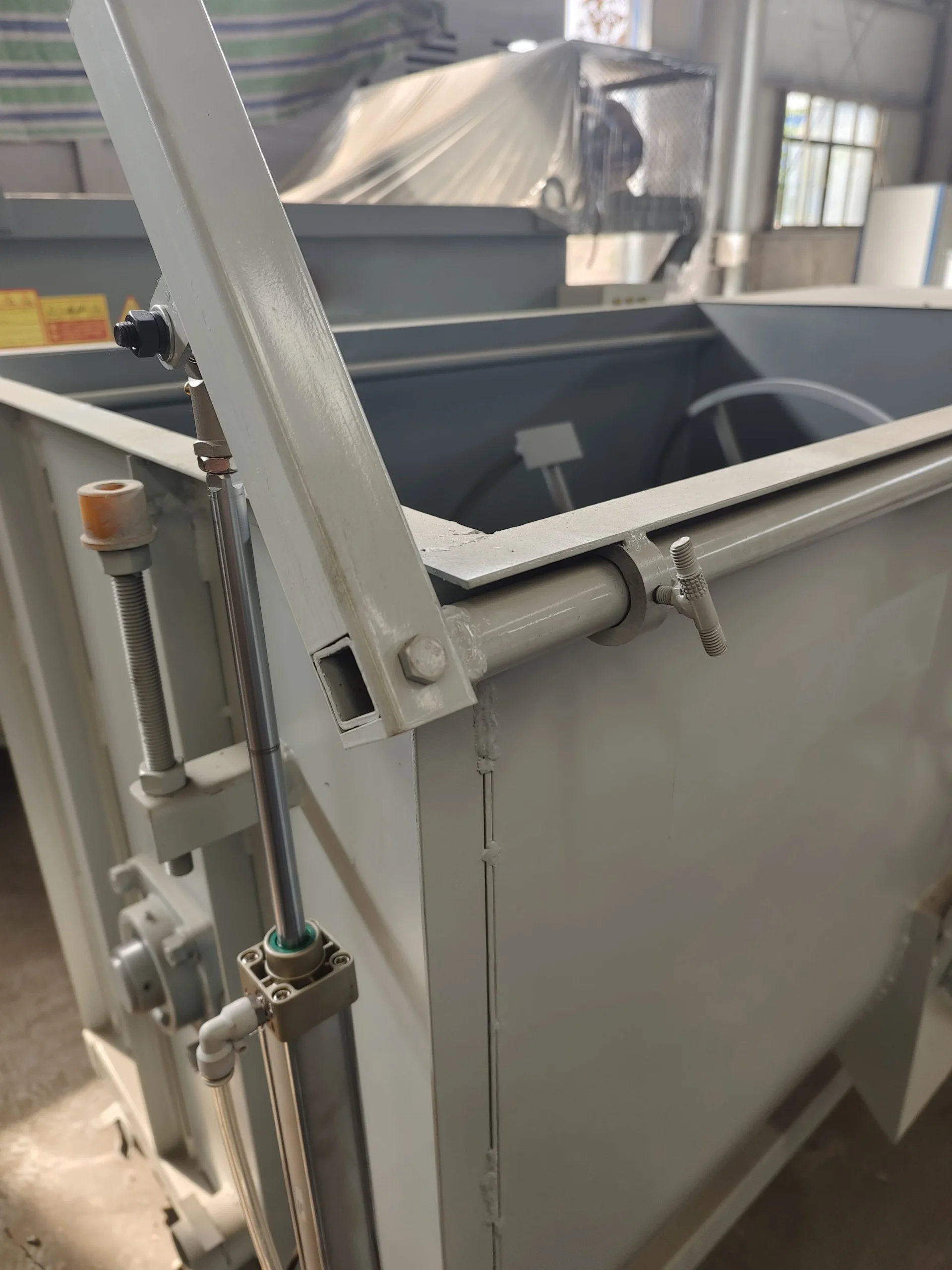

Uses a horizontal double-shaft structure. Materials are fully placed into the mixing chamber, then sprayed with water during mixing. Equipped with safety locking device and automatic turning function. Mixing time can be adjusted according to raw materials. Equipped with wheels for easy movement. |
|
MIXH300A |

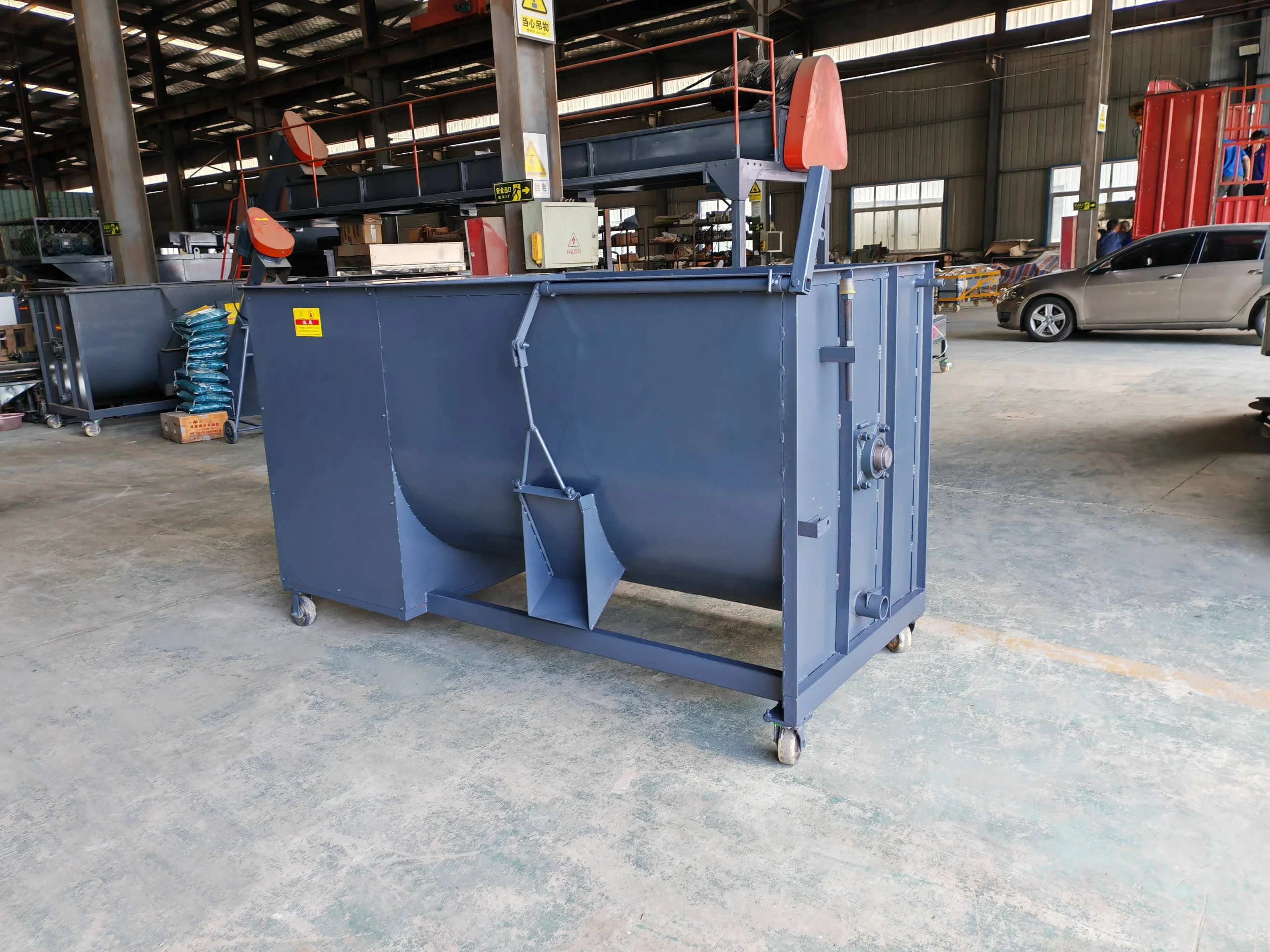

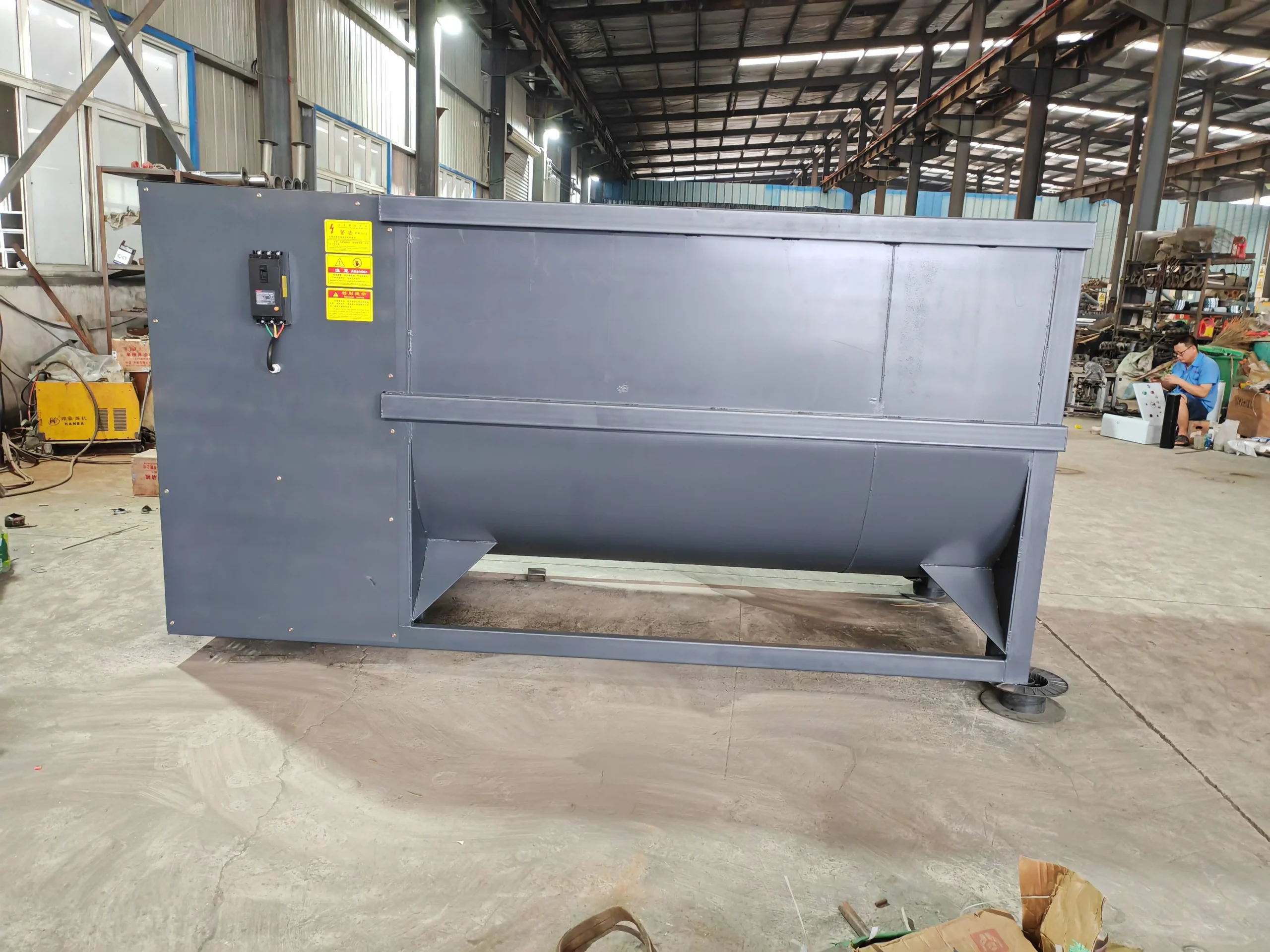

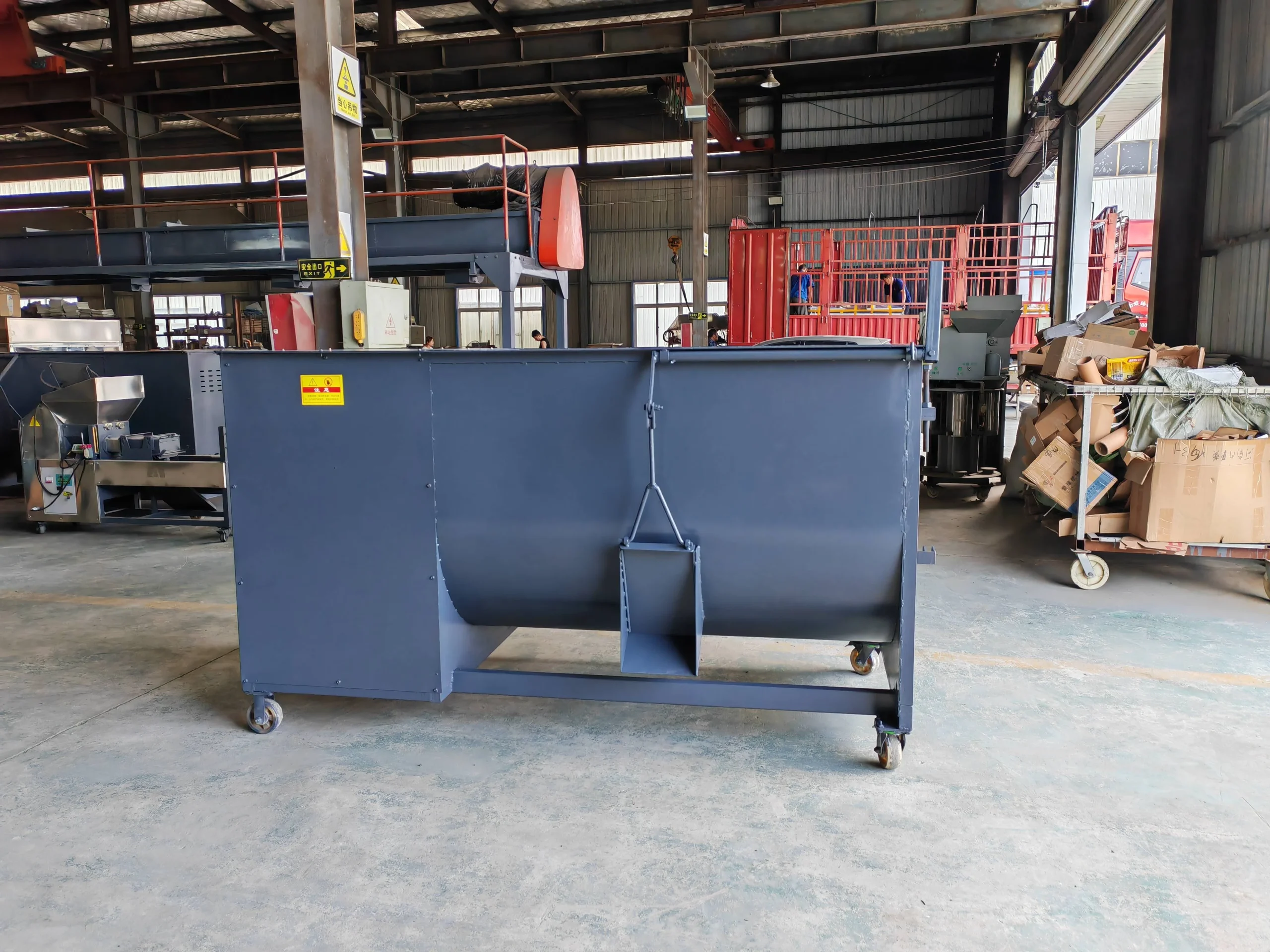

Side Discharge Substrate Mixer |
Maximum Capacity: 300kg/batch / 8min Suitable Materials: Corn cob, sawdust, etc. Power: 4kw Voltage: 380V 50Hz Weight: 480kg Dimension: 2290×880×1160mm |
Uses motor and reducer structure to effectively reduce speed and increase torque. Spiral mixing blades provide strong wear resistance and uniform mixing. Laser-cut components improve processing accuracy. Side discharge design makes unloading cleaner and reduces cleaning time. |
|
MIXH800A |
Side Discharge Substrate Mixer |
Mixing Capacity: 0.8m³ Power: 4kw Reducer Drive System Weight: 0.58T Dimension: 2290×1080×1191mm Capacity: 500kg/batch / 15min |
Designed for larger production requirements. Strong mixing capability, stable operation, and convenient movement with directional wheels. Suitable for continuous substrate preparation in medium and large mushroom factories. |
Working Principle: How Mushroom Substrate Mixer Works
Raw Material Feeding
Before mixing, mushroom cultivation materials are prepared according to the formula, including:
Sawdust
Corn cob
Straw
Cottonseed hull
Agricultural waste materials
Nutritional additives
The materials are loaded into the mixing chamber manually or through an automatic feeding system.
Mechanical Mixing Process

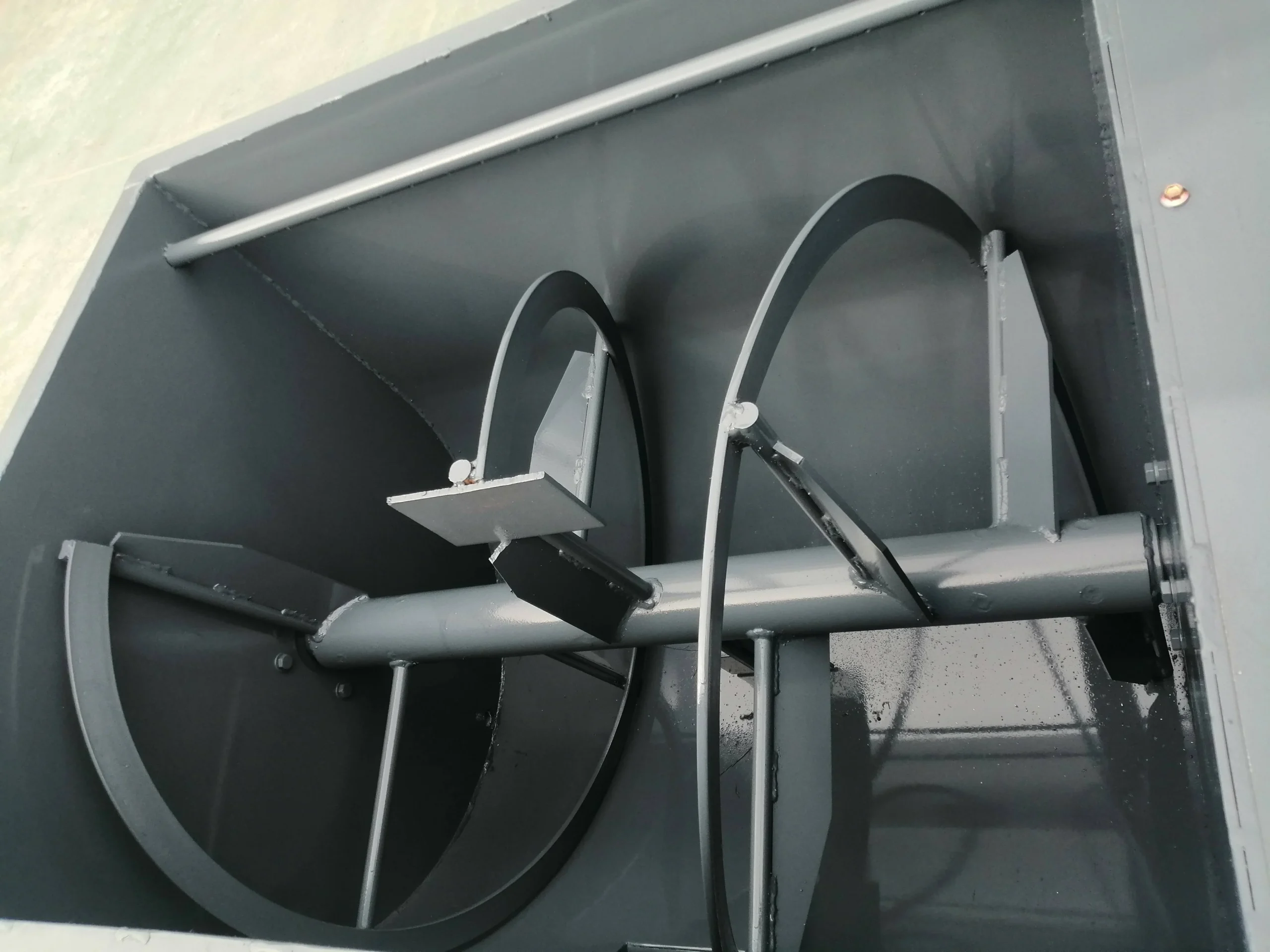

After starting the machine, the motor drives the reducer and mixing shaft. The spiral blades rotate continuously to lift, turn, and move the materials.
The mixing process helps:
Break material blocks
Distribute nutrients evenly
Improve substrate structure
Increase moisture uniformity
Water and Additive Mixing
During operation, water or nutrient solutions can be sprayed into the mixing chamber.
The double-shaft or spiral mixing structure ensures:
Even moisture distribution
No dry areas inside substrate
Stable substrate quality
Discharge and Next Production Stage
After reaching the preset mixing time, the finished substrate is discharged through the outlet.
Suitable Raw Materials and Mushroom Applications
Suitable Raw Materials
The strong spiral mixing structure ensures even distribution of carbon materials, nitrogen sources, water, and supplements.
Suitable Mushroom Varieties
Integration with Mushroom Production Line
Upstream Equipment
Raw Material Storage System
Installation & Service Support
Professional support is available for international customers.
Includes:
- Equipment installation instructions
- Electrical connection guidance
- Production line layout suggestions
Includes:
- Machine testing
- Mixing parameter adjustment
- Production efficiency optimization
Training covers:
- Equipment operation
- Daily maintenance
- Safety operation procedures
- Cleaning methods
Available spare parts include:
- Mixing blades
- Reducer components
- Motor parts
- Electrical components
Support includes:
- Remote troubleshooting
- Maintenance guidance
- Spare parts replacement advice
- Long-term technical assistance
FAQ
MIXH200A is suitable for small batch production. MIXH300A provides higher efficiency with side discharge. MIXH800A is designed for larger mushroom factories requiring higher production capacity.
