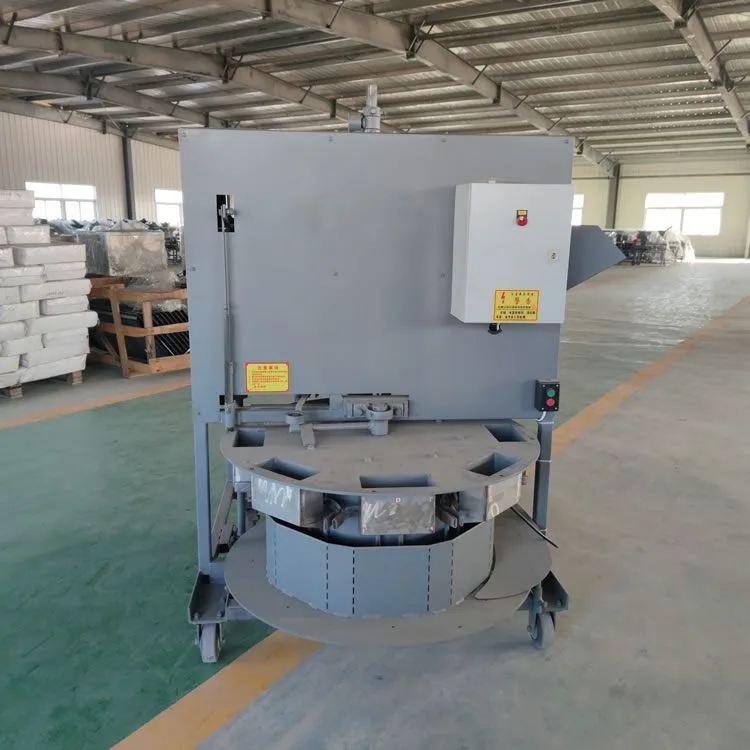

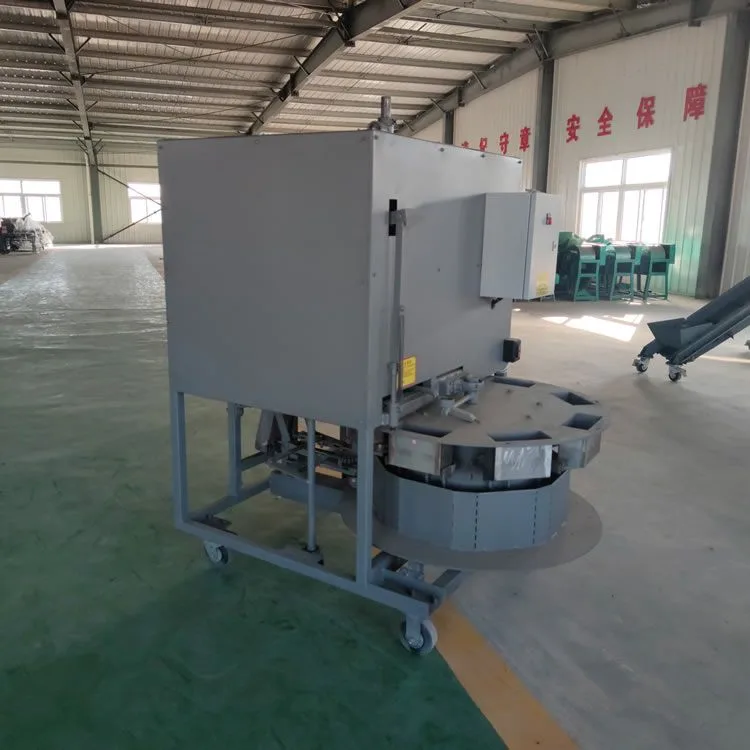

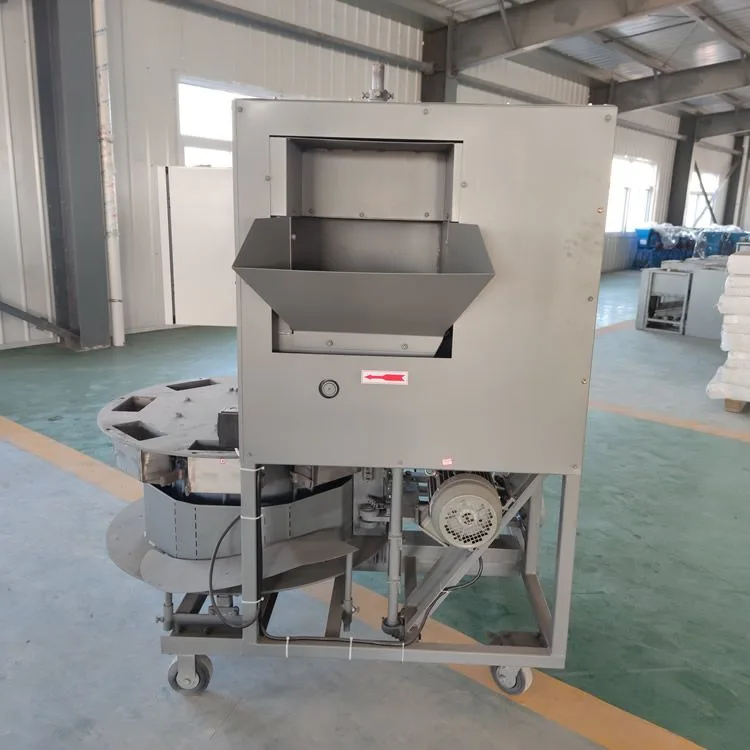

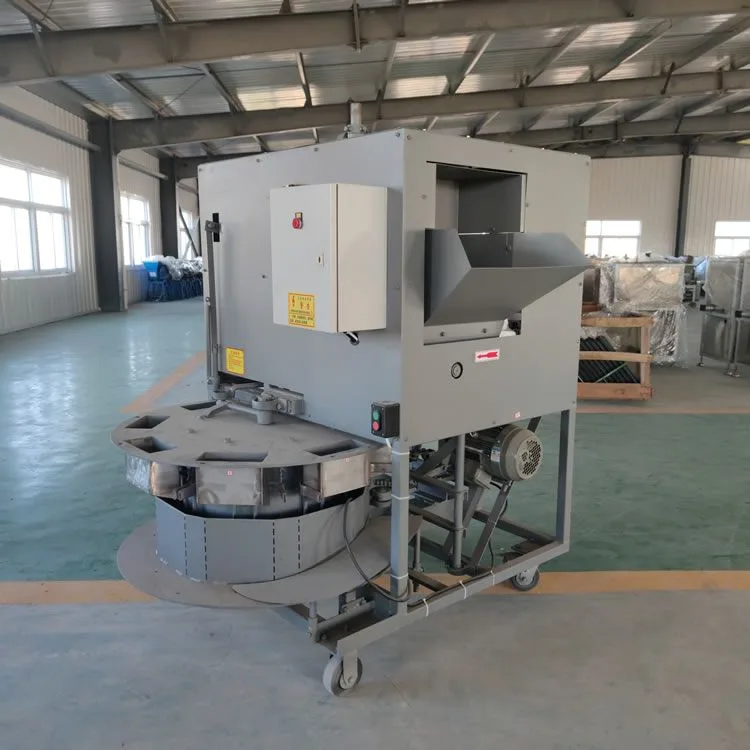

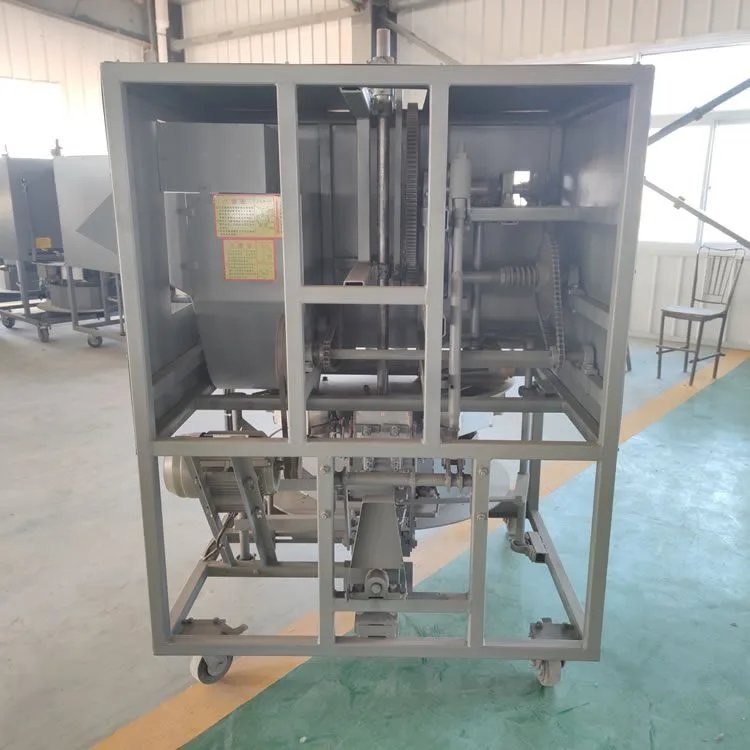

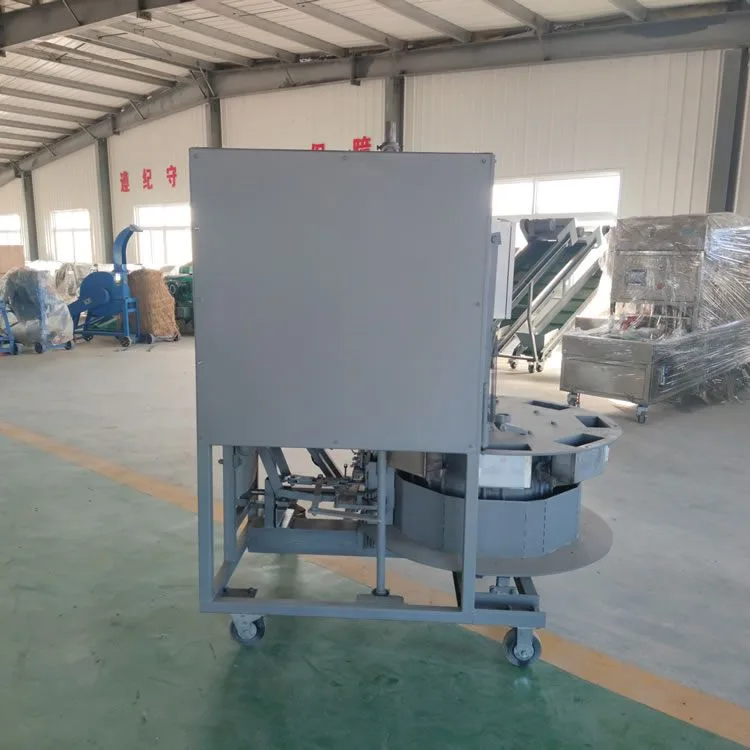

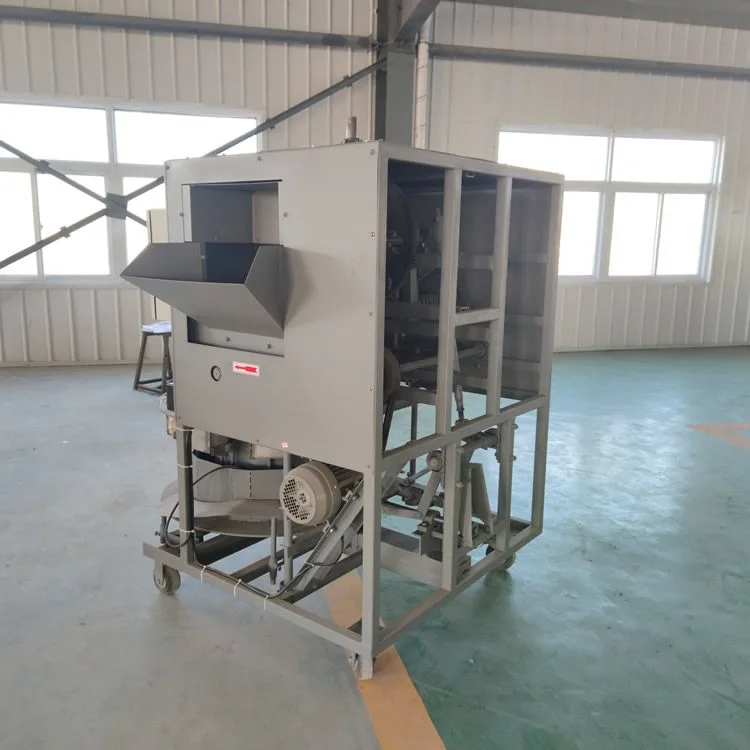

Vertical Mushroom Bag Filling Machine for Mushroom Substrate Bagging
The Vertical Mushroom Bag Filling Machine is an automated bagging solution designed for commercial edible mushroom cultivation, offering efficient substrate filling, compression molding, and standardized mushroom bag production. With a high-precision mechanical control system, this machine improves bagging consistency, reduces manual labor intensity, and produces uniformly shaped mushroom blocks, helping growers establish a more stable and efficient substrate preparation process.
Key Specifications
|
Model |
BMXH1000A |
|
Machine Type |
Vertical Mushroom Bag Filling Machine |
|
Bagging Capacity |
800-1000 bags/hour |
|
Motor Power |
3 kW |
|
Machine Dimension |
1550 × 1150 × 2000 mm |
|
Machine Weight |
480 kg |
|
Applicable Bag Width |
30-32 cm |
|
Maximum Filled Bag Height |
≤50 cm |
|
Filling Accuracy |
≤50 g |
|
Required Operators |
4-5 people |
|
Production Process |
Feeding → Filling → Compression & Bag Holding → Bag Output |
Working Principle
The Vertical Mushroom Bag Filling Machine adopts a vertical structure and precision mechanical control system to complete the substrate bagging process efficiently.
Substrate Feeding
Prepared mushroom substrate is delivered into the feeding system. The machine controls the material flow to ensure continuous and stable filling.
Quantitative Filling
The substrate is accurately loaded into cultivation bags according to the preset filling volume. The controlled feeding process reduces material waste and keeps the weight difference between bags within 50 g.
Compression and Bag Shaping
After filling, the machine performs compression and bag holding operations. The pressing system compacts the substrate evenly, creating a firm and uniform mushroom block shape that improves subsequent incubation and fruiting performance.
Automatic Hole Punching Function
The machine can complete automatic punching of six holes on mushroom bags during the forming process. These ventilation holes improve air exchange inside the substrate block and provide better conditions for mycelium growth.
Bag Output
Finished mushroom bags are released after forming and can be transferred manually or connected with a conveyor system for further processing.
Suitable Materials and Mushroom Applications
Suitable Substrate Materials
It is suitable for commercial cultivation of:
- Shiitake mushroom (Lentinula edodes)
- Oyster mushroom (Pleurotus ostreatus)
- Other bag-grown edible fungi
The square bag forming design is especially suitable for mushroom farms requiring larger cultivation blocks and stable bag shapes.
Capacity, Production Scale and Automation Level
With a production capacity of 800-1000 bags per hour, the Vertical Mushroom Bag Filling Machine is suitable for small and medium-scale mushroom production factories.
The machine integrates several key processes:
- Automatic substrate feeding
- Automatic filling
- Substrate compression
- Bag forming
- Automatic hole punching
Compared with traditional manual bag preparation, this equipment improves production efficiency and ensures consistent substrate density. It reduces repetitive labor operations while improving the standardization of mushroom cultivation bags.
Although the machine requires 4-5 operators for bag handling and production coordination, the main filling and forming processes are mechanically controlled, making it suitable for mushroom farms transitioning from manual production to semi-automated operations.
Integration with Mushroom Production Lines
Upstream Equipment Connection
Upstream equipment:
- Sawdust crusher
- Substrate mixer
- Mushroom compost mixer
- Steam sterilizer
- Substrate preparation equipment
Downstream equipment:
- Bag sealing machine
- Inoculation machine
- Mushroom incubation room
- Container growing room
- Climate control system
By integrating with other mushroom cultivation equipment, growers can create a continuous workflow from raw material processing, substrate preparation, bagging, sterilization, inoculation, and cultivation.
Service & FAQ
Professional support can include:
FAQ
It is mainly used for bag cultivation mushrooms such as shiitake and oyster mushrooms, as well as other edible fungi requiring large cultivation blocks.
The machine can produce approximately 800-1000 mushroom bags per hour, depending on substrate conditions and operation efficiency.
Yes. Bag sizes, production capacity, and production line configurations can be customized according to different mushroom cultivation requirements and factory conditions.
