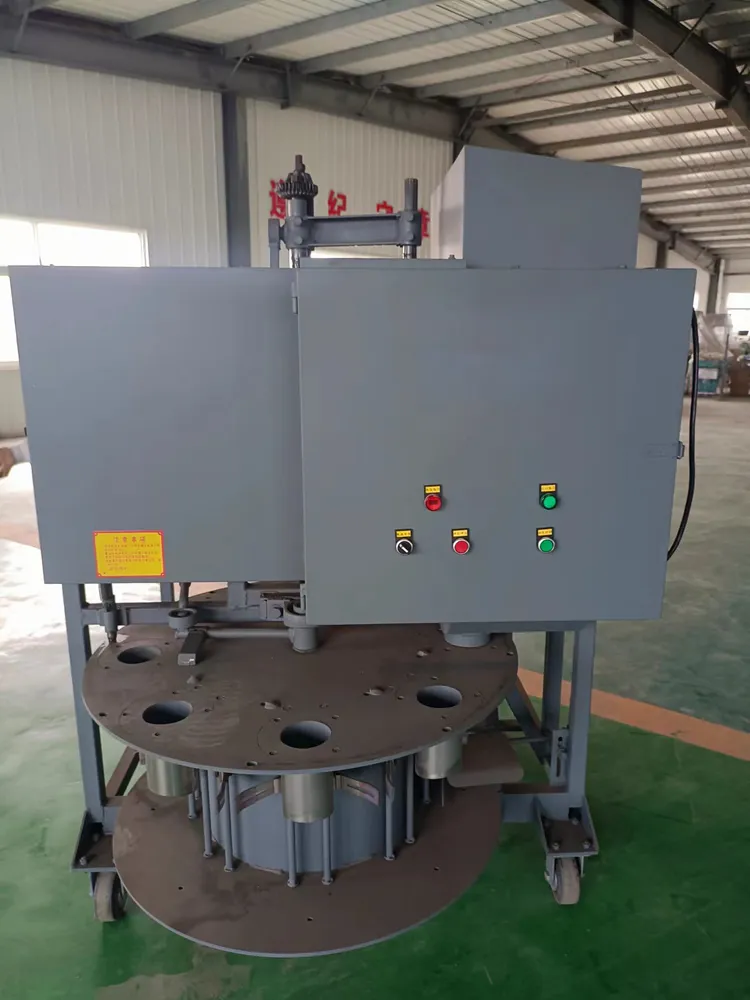

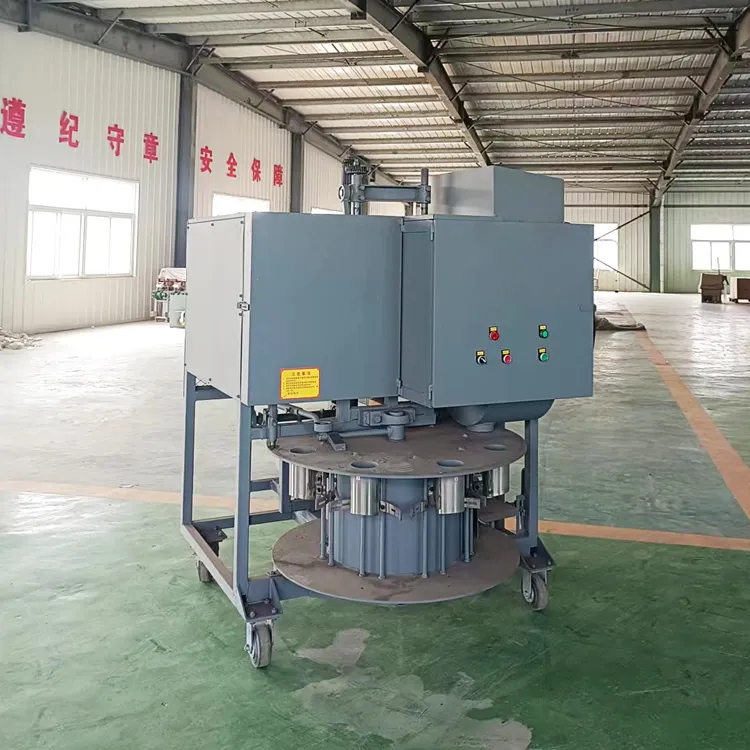

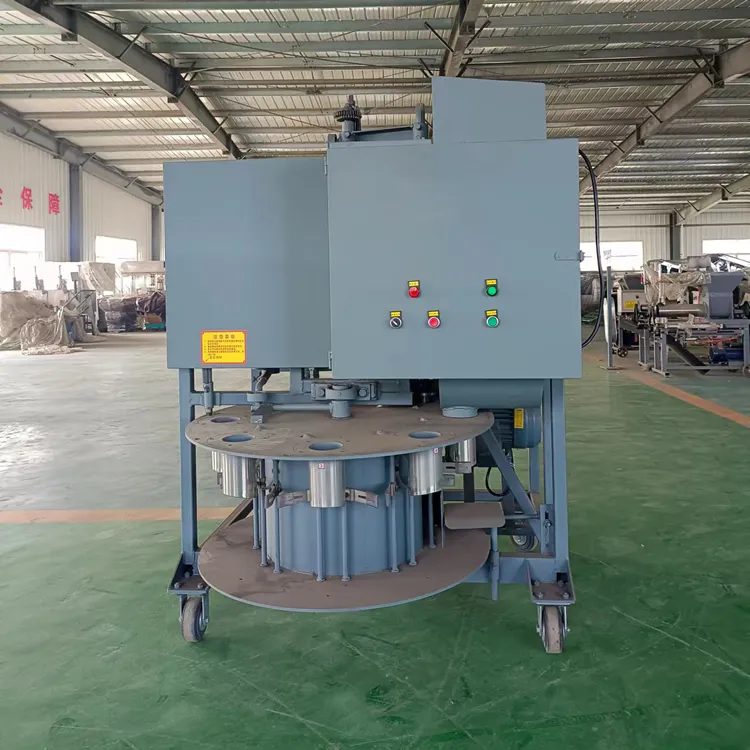

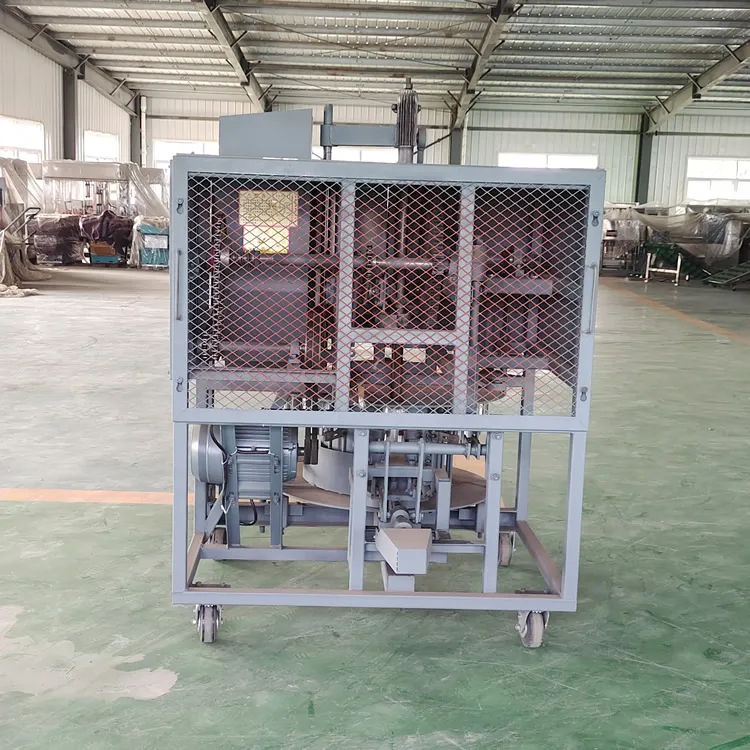

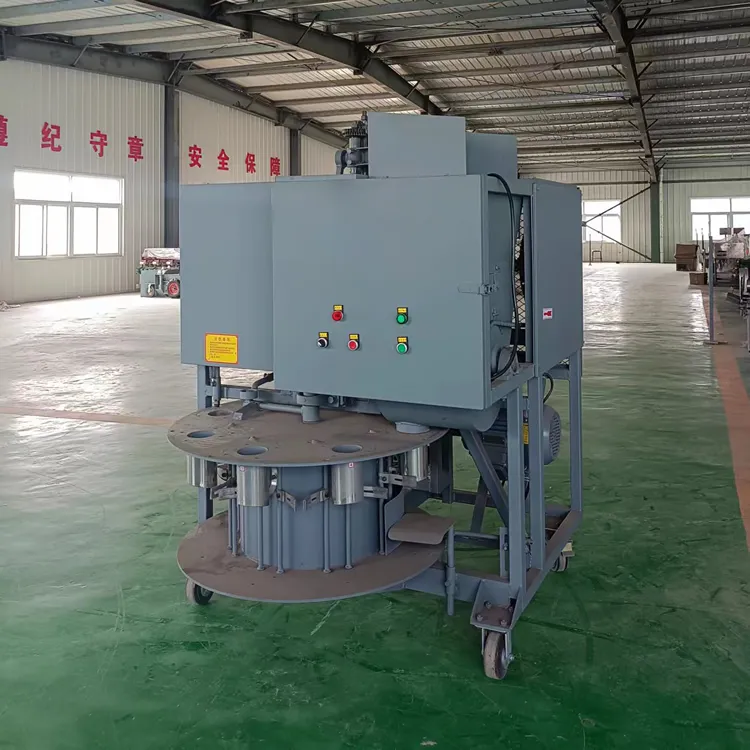

Double-Punch Vertical Bagging Machine for Mushroom Substrate Production
The Double-Punch Vertical Bagging Machine is an efficient automatic bag filling solution designed for industrial mushroom cultivation, providing accurate substrate filling, double compression molding, and consistent bag formation. With a high-precision mechanical control system, this machine improves production efficiency, reduces manual labor, and ensures uniform substrate density, helping mushroom growers achieve stable cultivation conditions and higher-quality mushroom yields.
Key Specifications
|
Model |
BMXH1500B |
|
Machine Type |
Double-Punch Vertical Bagging Machine |
|
Maximum Production Capacity |
1200-1500 bags/hour |
|
Power Supply |
3 kW, 380V, 50Hz |
|
Machine Weight |
580 kg |
|
Overall Dimension |
1400 × 1350 × 1600 mm |
|
Applicable Bag Width |
15-22 cm |
|
Maximum Filled Bag Height |
≤19 cm |
|
Operation Process |
Feeding → Filling → Double Punching → Bag Holding Compression → Bag Output |
Working Principle
The Double-Punch Vertical Bagging Machine adopts a vertical feeding and compression structure to complete the mushroom substrate bagging process automatically.
Substrate Feeding
Prepared mushroom substrate is transported into the machine hopper. The feeding system delivers the material evenly into the filling chamber, ensuring stable material supply.
Quantitative Filling
The machine automatically controls the amount of substrate entering each bag. The filling volume can remain consistent, reducing differences between individual mushroom bags.
Double Punch Compression
After filling, the machine uses a double-punch pressing structure to compress the substrate inside the bag. This process improves substrate compactness, maintains a uniform bag shape, and creates suitable conditions for mushroom mycelium growth.
Bag Holding and Forming
The stainless steel sleeve structure securely holds the bag during compression, preventing deformation and improving operational safety.
Bag Output
After completing filling and compression, finished mushroom bags are automatically released and can be connected with a conveyor system for continuous production.
Suitable Materials and Mushroom Applications
It is widely used for producing cultivation bags for:
The uniform compression function helps create consistent substrate density, which is important for moisture retention, ventilation, and mycelium colonization.
Capacity, Production Scale and Automation Level
With a production capacity of 1200-1500 bags per hour, the BMXH1500B is suitable for small and medium-sized mushroom farms, commercial cultivation facilities, and substrate preparation workshops.
Compared with manual bag filling operations, this machine significantly reduces labor requirements by integrating multiple processes, including:
- Automatic feeding
- Substrate filling
- Double compression
- Bag shaping
- Bag output
The machine can be connected directly to a bag receiving conveyor, creating a more continuous production workflow and improving overall factory efficiency.
Integration with Mushroom Production Lines
Upstream equipment:
- Mushroom substrate mixer
- Compost mixer
- Sawdust crusher
- Substrate sterilizer
- Automatic feeding system
Downstream equipment:
- Bag conveyor system
- Bag sealing machine
- Inoculation machine
- Mushroom incubation room
- Climate-controlled growing room
Service & FAQ
To ensure reliable operation, professional support can include:
The machine structure is designed for convenient maintenance, with accessible components and durable mechanical parts suitable for long-term production environments.
FAQ
The double-punch model uses two compression stages, providing better substrate compaction and more uniform bag shape, which is suitable for production requiring higher consistency.
Yes. It is suitable for many bag cultivation mushrooms, including oyster mushrooms, shiitake, enoki, seafood mushrooms, and specialty mushroom varieties.
Yes. Parameters such as bag size, production capacity, and production line configuration can be customized according to customer requirements.
