Small Clutch Mushroom Bagging Machine for Edible Mushroom Substrate Filling

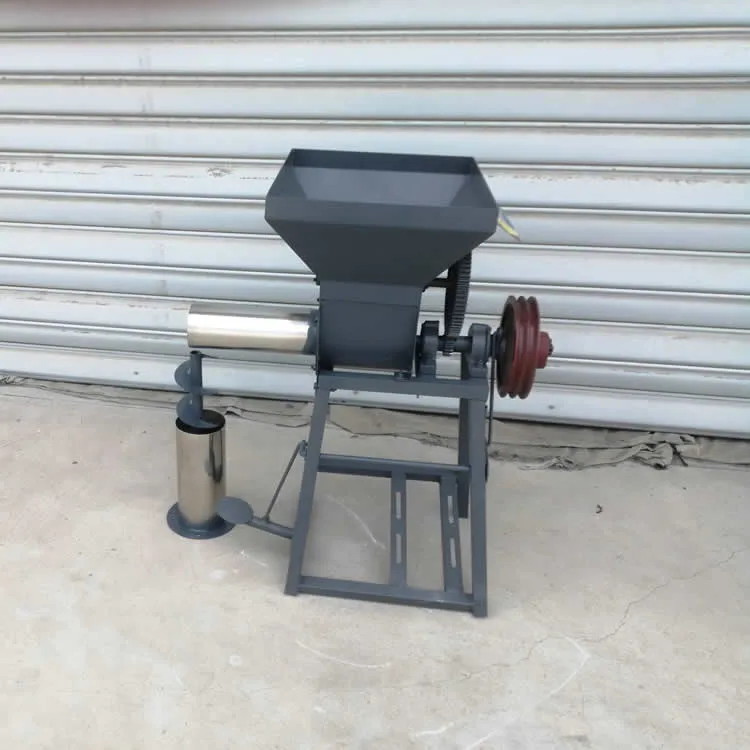

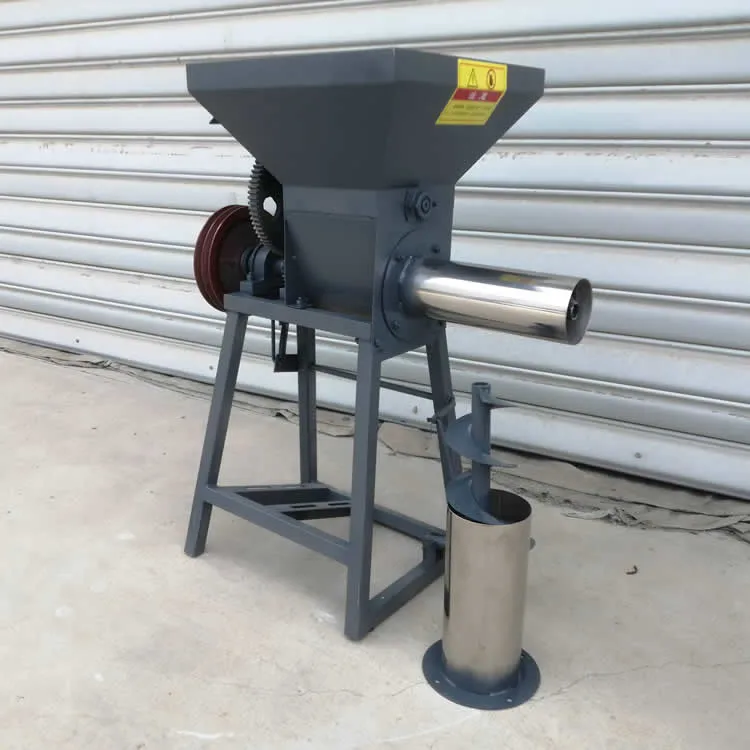

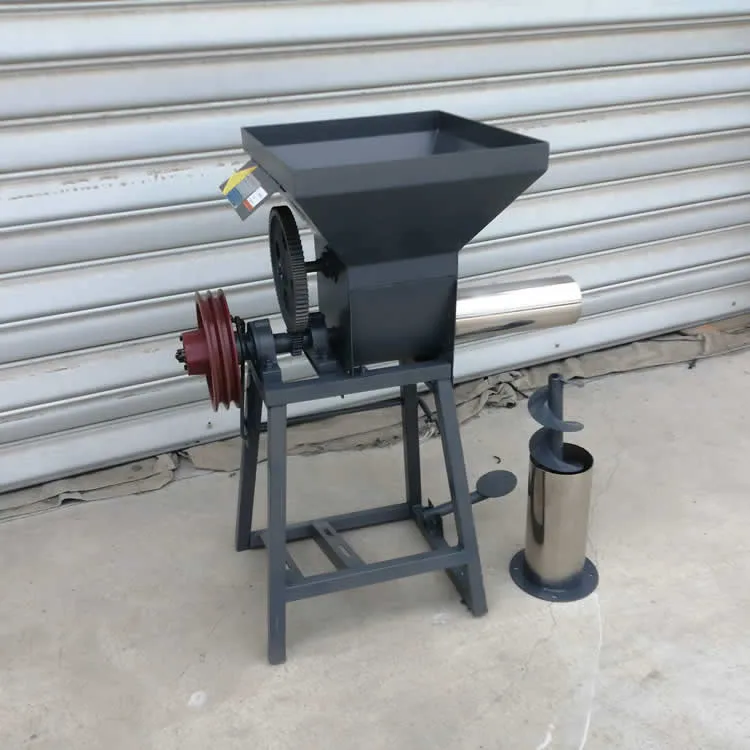

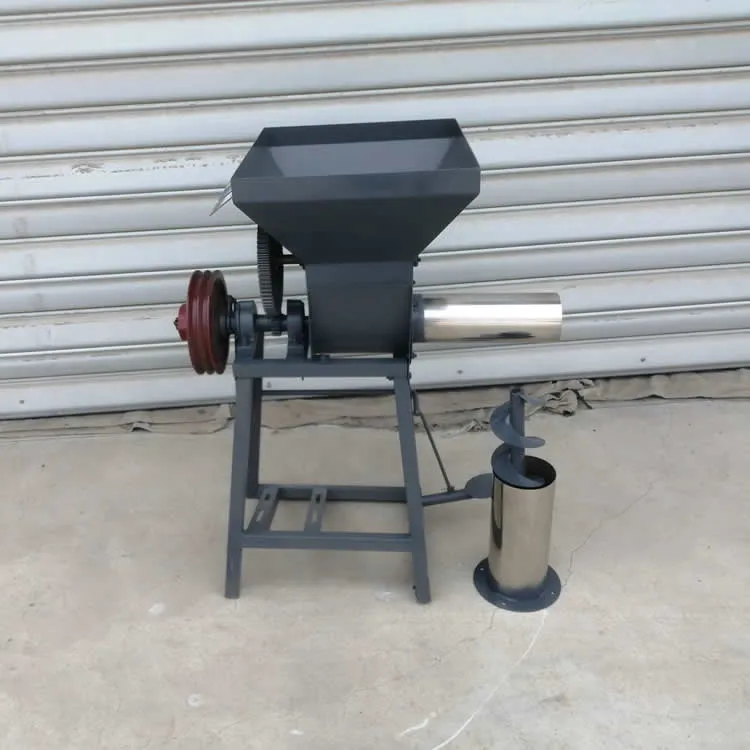

The BMXH800C Small Clutch Mushroom Bagging Machine is a compact and efficient substrate filling machine designed for small and medium edible mushroom farms. Featuring automotive-grade manufacturing technology, durable gear transmission and an advanced mechanical clutch system, it provides stable bag filling performance, adjustable filling length and tightness, and a flexible sleeve replacement system to reduce manual labor and improve mushroom bag preparation efficiency.

Request a Quote

Key Specifications

The BMXH800C is developed for mushroom growers who need a reliable bagging solution with limited investment and limited working space. Compared with manual filling, this machine improves filling speed and consistency while maintaining a simple structure that is easy to operate and maintain.

The machine adopts gear transmission technology and an advanced mechanical clutch, providing stable power transmission and long service life. The filling length, substrate tightness and bagging parameters can be adjusted according to different mushroom cultivation requirements.

Specification

BMXH800C

Machine Type

Small Clutch Mushroom Bagging Machine

Input Power

1.5 kW

Voltage

220V

Production Efficiency

≥800 bags/hour

Machine Weight

37 kg

Machine Dimensions

500 × 450 × 950 mm

Transmission System

Gear Transmission

Clutch System

Mechanical Clutch

Adjustable Bagging Length

0–48 cm

Applicable Bag Size

12–26 cm

Standard Sleeve

1 set

Optional Sleeves

15–16, 17–18, 19–20, 22–24, 25 cm

Suitable Mushroom Types

Shiitake, Oyster Mushroom, Wood Ear Mushroom, etc.

Operation Mode

Semi-Automatic



Main Structural Advantages

01
Disc hammer crushing structure for efficient wood processing
02
Replaceable screen design with mesh sizes from 8mm to 20mm
03
One-step cutting and crushing into finished sawdust
04
Steel plate construction for stable operation
05
Fixed knife and movable hammer design
06
Hammer direction can be adjusted and reused to extend service life

Working Principle

The BMXH800C completes mushroom bag filling through a simple mechanical process.
01

Prepare Mushroom Substrate

Before bagging, cultivation materials are prepared according to the mushroom production formula.

Common substrate materials include:

Hardwood sawdust

Corn cob

Cottonseed hull

Straw

Agricultural waste materials

Nutritional additives

The substrate should be mixed evenly with suitable moisture content before entering the bagging process.

02

Install the Suitable Sleeve

The machine uses interchangeable sleeves to adapt to different mushroom cultivation bags.

Available sleeve sizes include:

15–16 cm

17–18 cm

19–20 cm

22–24 cm

25 cm

The standard machine includes one sleeve, while additional sleeves can be purchased according to production requirements.

03

Place the Mushroom Bag

The empty cultivation bag is placed onto the filling sleeve. The operator positions the bag correctly to ensure smooth substrate filling.

04

Mechanical Filling Process

After starting the machine, the motor drives the gear transmission system. The mechanical clutch controls power connection and disconnection, allowing stable operation during repeated bagging cycles.

The substrate is pushed into the cultivation bag through the filling mechanism.

05

Adjust Filling Length and Density

he operator can adjust:

Filling length: 0–48 cm

Substrate tightness

Filling amount according to bag specifications

This helps ensure consistent substrate density, which is important for uniform mushroom mycelium growth.

06

Remove Filled Bags

After reaching the required filling length, the finished mushroom bag is removed and transferred to the next production stage.

Typical next steps include: Bag Sealing → Sterilization → Cooling → Inoculation → Incubation

Suitable Raw Materials and Mushroom Applications

Suitable Substrate Materials

The BMXH800C is designed for edible mushroom cultivation using bag-based growing methods.
Sawdust-based substrate
Corn cob substrate
Straw substrate
Wood chips
Cottonseed hull mixtures
Other formulated mushroom growing media

Suitable Mushroom Varieties

Shiitake Mushroom (Lentinula edodes)
Shiitake cultivation commonly uses sawdust-based substrate bags. The adjustable filling density helps create suitable conditions for long-term mycelium colonization.
Oyster Mushroom (Pleurotus ostreatus)
The machine is suitable for oyster mushroom farms using sawdust, corn cob and agricultural waste substrates.
Wood Ear Mushroom (Auricularia spp.)
For wood ear mushroom bag cultivation, the machine can provide efficient preparation of cultivation bags with consistent substrate filling.

Capacity, Production Scale and Automation Level

The BMXH800C provides a production efficiency of ≥800 bags/hour, making it suitable for growers who need higher productivity than manual filling but do not require a fully automated industrial line.

Recommended Applications

Small Mushroom Farms
Advantages:
Compact structure
Low investment cost
Easy movement
Suitable for limited production space
Medium Mushroom Workshops
Advantages:
Stable continuous operation
Reduced labor requirements
Improved bagging consistency
Mushroom Substrate Preparation Centers
The machine can be used as an independent workstation together with other mushroom production equipment.

Automation Level

The BMXH800C is a semi-automatic mushroom bagging machine.

The operator performs:

Bag placement

Machine start/stop operation

Filled bag removal

The machine performs:

Substrate feeding

Mechanical filling

Controlled bagging operation

This design provides a good balance between efficiency, cost and operation simplicity.



Integration with Mushroom Production Line

The BMXH800C can be integrated into a complete edible mushroom production workflow.

Upstream Equipment

Sawdust Crusher
Processes wood materials into suitable substrate particles.
Corn Cob Crusher
Prepares agricultural waste materials for mushroom cultivation.
Substrate Mixer
Ensures uniform mixing of substrate, water and nutrients before bagging.

Downstream Equipment

Mushroom Sterilizer
Sterilizes filled cultivation bags to reduce contamination risk.
Mushroom Inoculation Machine
Performs efficient inoculation after sterilization and cooling.
Cultivation Racks
Supports incubation and fruiting stages.

The compact size of the BMXH800C makes it especially suitable for small production lines and flexible mushroom cultivation workshops.

Typical production process:
Raw Material Crushing → Substrate Mixing → BMXH800C Bagging → Sterilization → Inoculation → Incubation → Fruiting

Automation Options

The standard machine uses manual feeding operation. For higher production efficiency, it can be integrated with:

Feeding conveyors
Storage systems
Dust collection systems
Automatic substrate production lines

Automation level can be customized according to customer production capacity.

Service & FAQ

Installation & Service

Installation Guidance

Support includes:

  • Machine positioning instructions
  • Electrical connection guidance
  • Sleeve installation
  • Basic operation procedures
Commissioning Service

Includes:

  • Machine testing
  • Filling parameter adjustment
  • Trial operation with customer substrate materials
Operator Training

Training can cover:

  • Correct machine operation
  • Bag installation method
  • Sleeve replacement
  • Daily cleaning
  • Routine maintenance
Spare Parts Supply

Available spare parts include:

  • Different size sleeves
  • Gear transmission components
  • Mechanical clutch parts
  • Wear components
Technical Support & After-Sales Service

Support includes:

  • Remote operation guidance
  • Troubleshooting assistance
  • Maintenance recommendations
  • Spare parts replacement support

FAQ

What is the production capacity of the BMXH800C?
The machine can achieve a production efficiency of ≥800 mushroom bags per hour. Actual capacity depends on substrate type, bag size, filling length and operator operation.
What mushroom bags can this machine handle?
The BMXH800C can work with mushroom bags approximately 12–26 cm in diameter when equipped with suitable sleeves.
What sleeve sizes are available?
The machine supports sleeves including:
15–16 cm
17–18 cm
19–20 cm
22–24 cm
25 cm
One sleeve is included as standard, and additional sleeves can be purchased separately.
Can the filling length be adjusted?
Yes. The filling length can be adjusted from 0 to 48 cm according to different mushroom cultivation requirements.
What is the difference between this machine and manual bag filling?
Compared with manual filling, the BMXH800C provides:
Higher production efficiency
More consistent substrate density
Reduced labor requirements
Better production standardization
Which mushrooms can use this bagging machine?
It is suitable for:
Shiitake mushroom
Oyster mushroom
Wood ear mushroom
Other edible mushrooms cultivated in substrate bags
Can the machine be customized?
Yes. Custom options may include:
Sleeve sizes
Voltage requirements
Machine configuration
Production line integration solutions
according to customer cultivation methods and production scale.
