Efficient Liquid Spawn Inoculation for Short-Bag Mushroom Cultivation

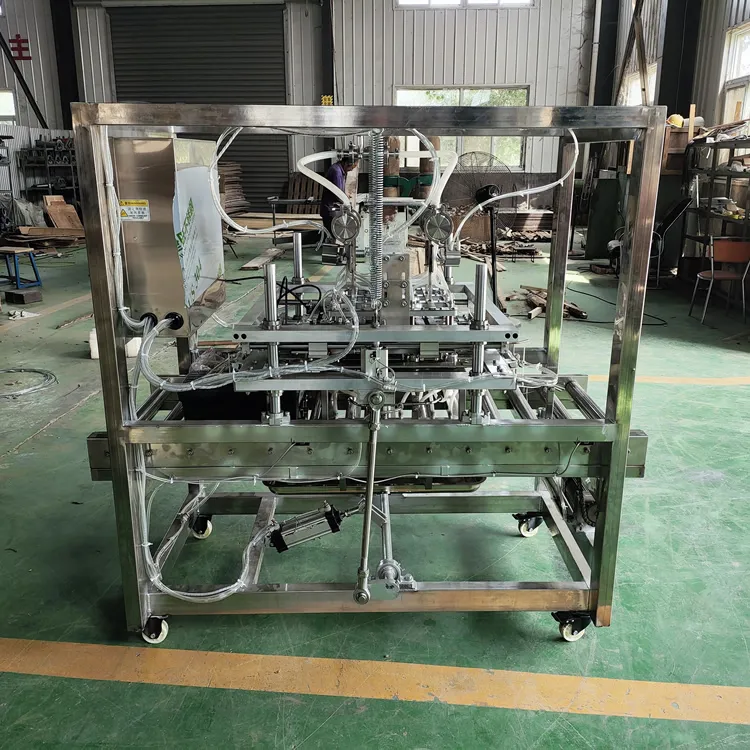

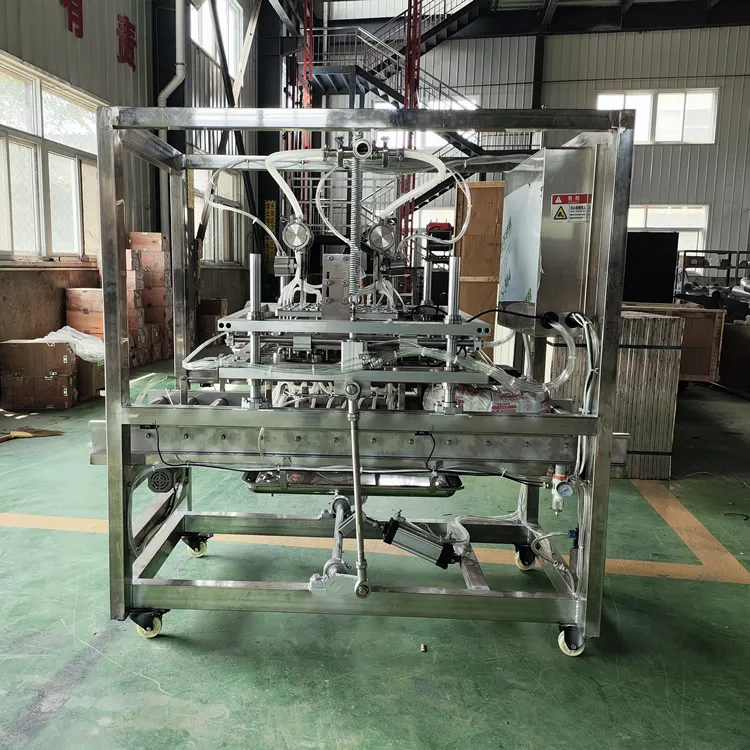

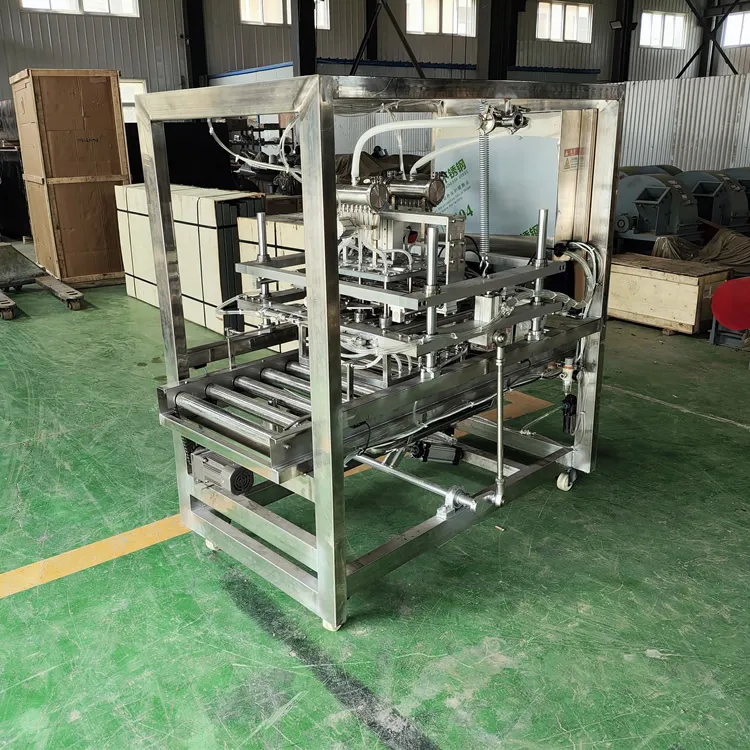

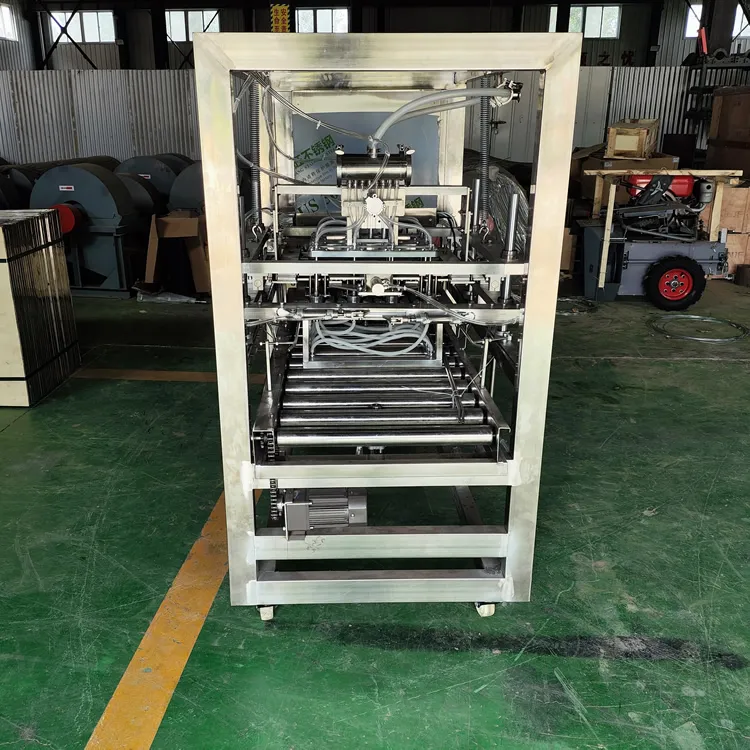

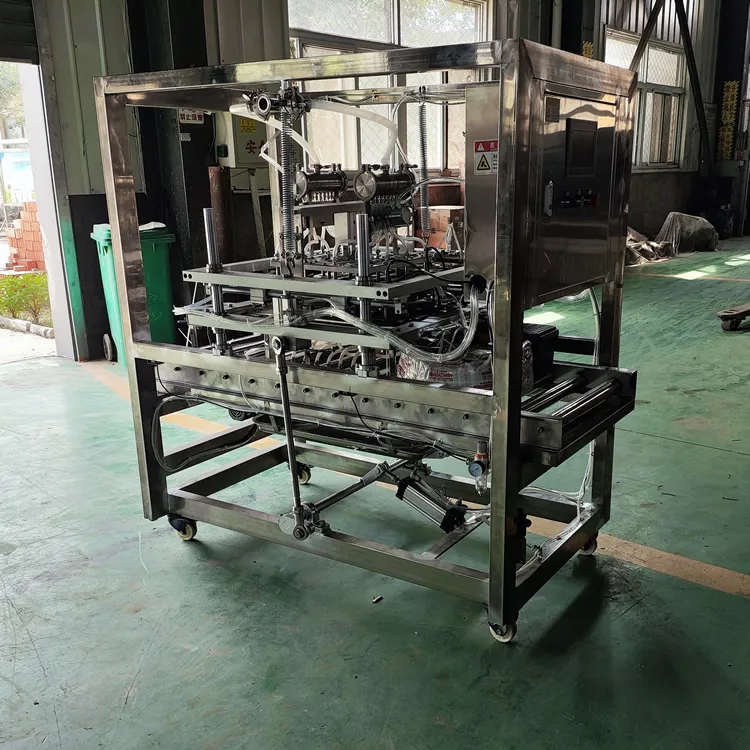

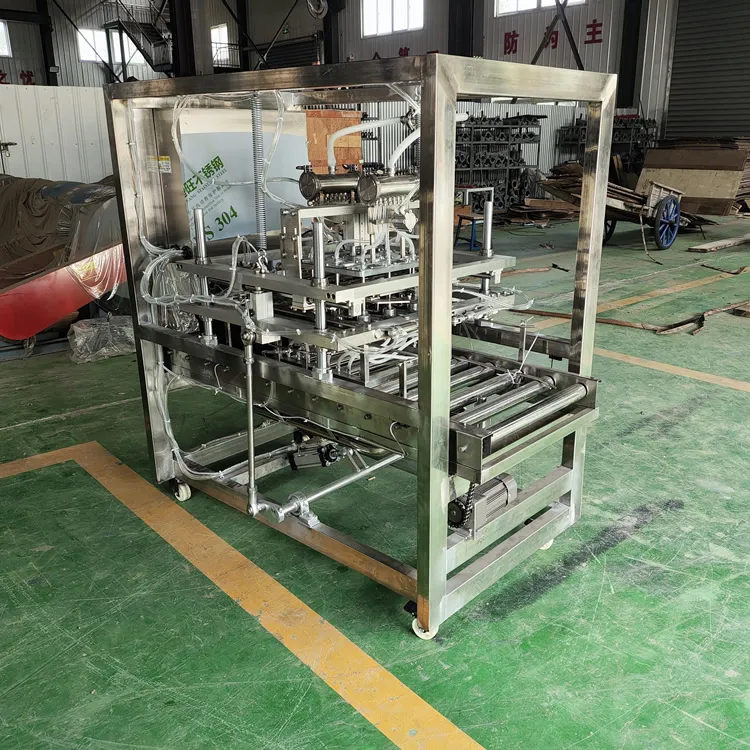

The IMXH6000A Liquid Spawn Inoculation Machine is an automated mushroom inoculation machine designed for liquid spawn inoculation of short mushroom cultivation bags with cap-and-ring growing systems. With a production capacity of up to 6,000 bags per hour and a compact 150W drive system, it delivers a consistent and evenly distributed amount of liquid spawn to each cultivation bag, helping mushroom growers improve inoculation efficiency, promote more uniform mycelium colonization, and shorten the cultivation cycle.
Unlike manual liquid inoculation, which can result in inconsistent inoculation volumes and higher labor requirements, the IMXH6000A provides a more standardized inoculation process for commercial mushroom farms. Its specialized inoculation mechanism is designed to ensure sufficient and uniform liquid spawn delivery to each bag.
Key Specifications
|
Specification |
IMXH6000A |
|
Machine Type |
Liquid Spawn Inoculation Machine |
|
Model |
IMXH6000A |
|
Application |
Short-Bag Liquid Spawn Inoculation |
|
Suitable Bag Type |
Cap-and-Ring Mushroom Bags |
|
Capacity |
Up to 6,000 bags/hour |
|
Power |
150 W |
|
Machine Size |
1600 × 800 × 1600 mm |
|
Inoculation Medium |
Liquid Mushroom Spawn |
|
Application |
Commercial Mushroom Cultivation |
Actual production capacity may vary depending on bag size, cultivation process, liquid spawn characteristics, operating conditions, and upstream/downstream equipment.
Working Principle
The IMXH6000A works as part of the inoculation stage after the sterilized mushroom substrate has been prepared and cooled to a suitable inoculation condition.
Bag Feeding
Prepared mushroom cultivation bags are transferred to the inoculation machine after substrate filling, sealing, sterilization, and cooling. The bags are positioned for stable and continuous inoculation.
Bag Positioning
The machine accurately positions the short cultivation bags under the inoculation mechanism to maintain a consistent injection position.
Liquid Spawn Inoculation
Liquid mushroom spawn is delivered through the inoculation system and injected into the cultivation bag. The specialized inoculation structure helps provide sufficient and relatively uniform liquid spawn distribution for each bag.
Continuous Processing
The machine continuously processes bags in sequence, reducing repetitive manual inoculation work and improving overall production efficiency.
Transfer to Cultivation
After inoculation, the bags can be transferred to the cultivation area for mycelium colonization under controlled temperature, humidity, ventilation, and other growing conditions.
Suitable Raw Materials and Mushroom Species
Capacity / Production Scale
With a rated capacity of up to 6,000 bags per hour, the IMXH6000A is intended for commercial and industrial mushroom cultivation operations rather than small household production.
At this production level, the machine can help mushroom farms reduce repetitive manual inoculation operations and maintain a more consistent inoculation workflow. The actual hourly output should be evaluated together with the capacity of the upstream bagging, sterilization, cooling, and material handling systems.
For larger mushroom farms, the machine can be incorporated into a continuous production line to balance the inoculation stage with other processes.
Automation Level
The IMXH6000A is an automated inoculation machine designed to reduce manual intervention during liquid spawn injection.
Its main advantages include:
- Automated and continuous inoculation
- Consistent inoculation positioning
- More uniform liquid spawn delivery
- Reduced repetitive labor
- Higher production efficiency
- Suitable for continuous commercial mushroom production
- Easier integration into a mushroom production line
For farms upgrading from manual inoculation to mechanized production, the machine can serve as a dedicated inoculation unit between substrate preparation/sterilization and mushroom cultivation.
Integration with Mushroom Production Lines
Upstream Equipment
The IMXH6000A can be connected with:
- Mushroom Substrate Mixer– for uniform mixing of sawdust, supplements, water, and other substrate ingredients.
- Mushroom Bagging Machine– for automatically filling prepared substrate into cultivation bags.
- Bag Sealing / Capping Equipment– for preparing short bags with the required cap-and-ring structure.
- Mushroom Substrate Sterilizer– for sterilizing filled cultivation bags before inoculation.
Cooling System / Clean Inoculation Area – for preparing sterilized substrate for the inoculation process.
Downstream Equipment
After inoculation, the bags can be transferred to:
- Mushroom incubation rooms
- Cultivation racks
- Environmental control systems
- Ventilation and air-conditioning systems
- Humidification systems
- Automated mushroom cultivation lines
Substrate Mixing → Bagging → Capping/Sealing → Sterilization → Cooling → Liquid Spawn Inoculation → Incubation → Fruiting → Harvesting
Service & FAQ
Installation & Service
For complete mushroom cultivation projects, service requirements can be matched to the project scope. Available support can include:
Machine installation instructions and technical guidance.
Assistance with machine setup and initial production testing.
Basic operating procedures, cleaning requirements, and routine maintenance guidance.
Supply of replacement parts for routine maintenance and long-term operation
Assistance with machine operation, adjustment, and troubleshooting.
Technical assistance throughout the equipment’s service life.
FAQ
The rated production capacity is up to 6,000 bags per hour. Actual output may vary according to bag size, operating conditions, liquid spawn characteristics, and the efficiency of connected equipment.
It is mainly suitable for short-bag cultivation of king oyster mushroom, Lurong mushroom, enoki mushroom, shimeji mushroom, oyster mushroom, and other edible mushrooms using compatible cap-and-ring cultivation methods.
The IMXH6000A is specifically designed for liquid spawn inoculation. If your farm uses solid or grain spawn, a dedicated solid spawn inoculation machine should be selected instead.
For equipment selection and configuration, buyers should provide the mushroom species, bag dimensions, cap-and-ring specifications, target production capacity, liquid spawn characteristics, existing equipment, factory layout, and required automation level. This information helps determine whether the IMXH6000A is suitable and how it should be integrated into the complete production line.
