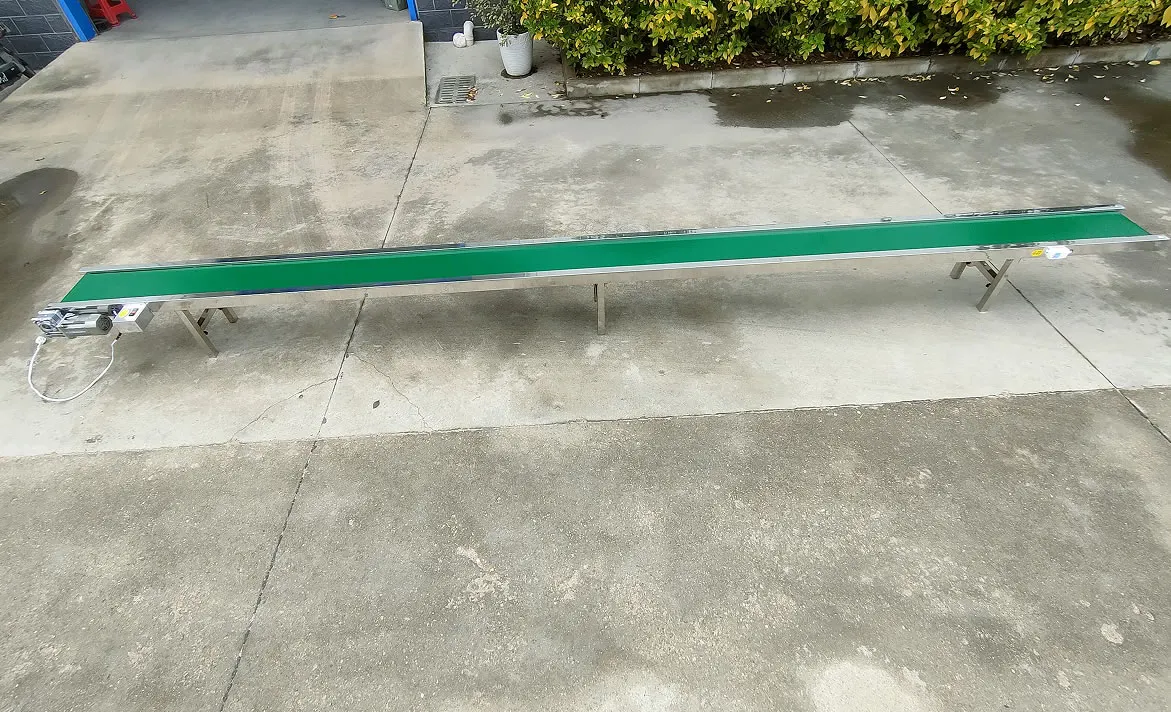

Belt Conveyor for Mushroom Cultivation
The BCXH60A Belt Conveyor is a continuous material-handling system specially designed for transporting mushroom cultivation bags and mushroom baskets, supporting both single-bag and full-basket conveying as well as flat or height-difference transportation to improve material movement efficiency within mushroom production facilities.
Key Specifications
|
Specification |
BCXH60A |
|
Product Type |
Belt Conveyor |
|
Model |
BCXH60A |
|
Overall Dimensions |
6 × 0.6 × 0.75 m |
|
Conveying Speed |
0.4 m/s |
|
Rated Power |
0.75 kW |
|
Rated Voltage |
380 V / 50 Hz |
|
Main Application |
Mushroom Bag & Basket Conveying |
|
Conveying Method |
Single Bag / Full Basket |
|
Installation |
Flat or Height-Difference Transportation |
Main Features
- 6-meter conveying length
- 4 m/s conveying speed
- 75 kW rated power
- 380 V / 50 Hz power supply
- Suitable for transporting mushroom cultivation bags
- Supports both individual bags and full baskets
- Suitable for flat-floor transportation
- Can be used where there is a height difference between processing areas
- Adaptable to different mushroom farm layouts
- Suitable for manual, semi-automatic, and automated material-handling systems
Working Principle
The BCXH60A uses a continuously moving belt to transport mushroom cultivation bags or baskets from one working area to another.
Loading
Mushroom bags or baskets are placed onto the conveyor belt at the feeding end. Depending on the production process, workers or upstream equipment can perform the loading operation.

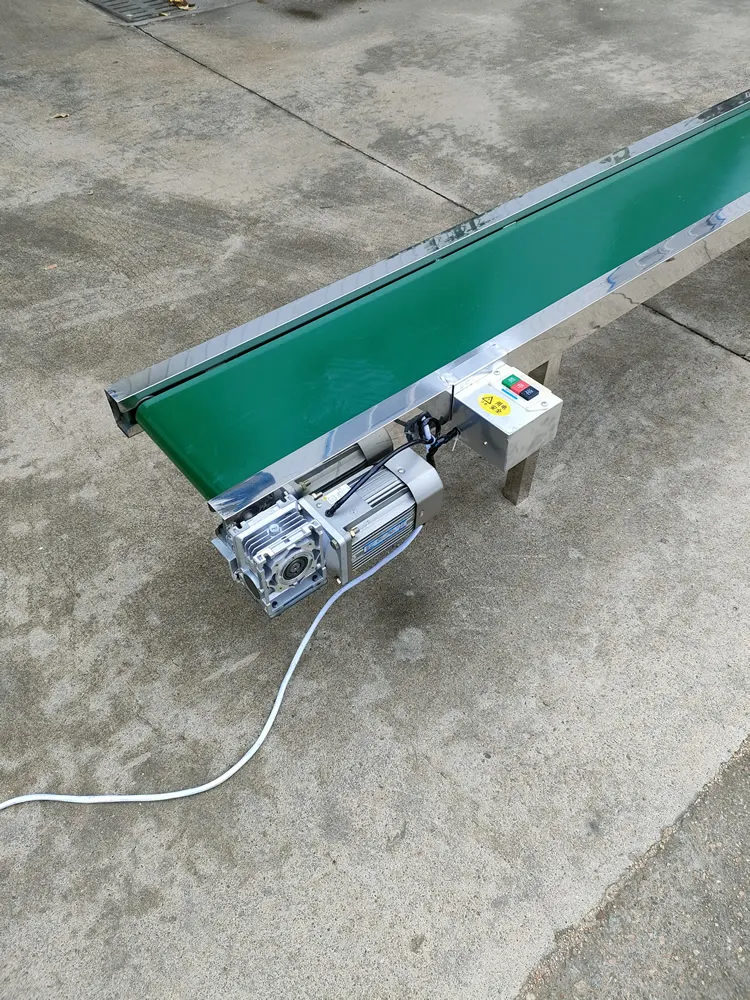

Motor Drive
The 0.75 kW motor supplies power to the belt conveyor’s drive system.
Continuous Belt Movement
The drive system moves the conveyor belt at approximately 0.4 m/s, creating a continuous conveying surface.
Mushroom Bag or Basket Transport
Mushroom bags, baskets, or other compatible cultivation containers move along the belt toward the designated working area.
The conveyor can transport individual mushroom bags or multiple bags placed inside a cultivation basket, depending on the customer’s production method.
Discharge
At the end of the conveyor, operators or downstream equipment can remove the bags or baskets for the next production process.
The conveyor can also be incorporated into production lines where the transport path needs to accommodate a difference in working height.
Suitable Materials & Mushroom Applications
Suitable Items
It can be used to transport:
- Mushroom cultivation bags
- Colonized mushroom bags
- Inoculated mushroom bags
- Fruiting mushroom bags
- Mushroom cultivation baskets
- Bags placed inside cultivation baskets
- Other compatible mushroom cultivation containers
Suitable Mushroom Species
The conveyor can be incorporated into production systems for various bag-grown mushrooms, including:
- Oyster Mushroom
- Shiitake Mushroom
- Wood Ear Mushroom
- Black Fungus
- King Oyster Mushroom
- Lion’s Mane Mushroom
- Other mushrooms cultivated using compatible bag-based methods
Capacity / Production Scale & Automation Level
The BCXH60A operates at a conveying speed of approximately 0.4 m/s, allowing continuous movement of mushroom bags and baskets between different production areas.
Rather than specifying capacity only by kilograms per hour, belt-conveyor performance is often determined by:
- Conveyor speed
- Bag size
- Basket size
- Spacing between bags
- Loading and unloading method
- Production-line configuration
For this reason, the actual number of bags or baskets transported per hour should be determined according to the customer’s cultivation process.
Small and Medium Mushroom Farms
The conveyor can be used to move cultivation bags between:
Bagging → Sterilization → Cooling → Inoculation → Incubation
Commercial Mushroom Farms
Multiple conveyor sections can be connected to create longer or more complex material-handling routes.
Automation Level
The BCXH60A can be used in:
- Manual production systems
- Semi-automatic mushroom farms
- Automated mushroom production lines
It can serve as a material-transfer link between different workstations and reduce the need for repeated manual carrying.
Integration with Mushroom Production Lines
Upstream Equipment
Upstream Equipment
Depending on the production line, the belt conveyor can receive bags or baskets from:
- Mushroom Bagging Machine
- Automatic Bagging & Sealing Machine
- Bag loading equipment
- Basket loading equipment
- Sterilization loading area
A typical process could be:
Mushroom Bagging Machine → Belt Conveyor → Sterilization Area
Downstream Equipment
The conveyor can transport mushroom bags toward:
- Sterilizer / Autoclave
- Cooling area
- Inoculation Machine
- Incubation Room
- Incubation racks
- Fruiting Room
- Harvesting and sorting areas
For example:
Inoculation → BCXH60A Belt Conveyor → Incubation Room
or:
Incubation → BCXH60A Belt Conveyor → Fruiting Room
Service & FAQ
Installation & Service
Technical support can be provided according to the customer’s project requirements, including:
- Production-line layout consultation
- Conveyor positioning guidance
- Installation guidance
- Commissioning support
- Operator instructions
- Spare parts support
- Technical support
- After-sales service
When planning a belt conveyor system, customers should provide:
- Required conveying distance
- Bag or basket dimensions
- Number of bags/baskets per hour
- Required conveying height
- Loading and unloading positions
- Upstream and downstream equipment
FAQ
Yes. The conveyor can transport individual mushroom bags as well as bags placed together inside cultivation baskets.
Yes. The machine is designed to support both single-bag conveying and full-basket conveying, provided that the basket dimensions and weight are compatible with the conveyor configuration.
The specified conveying speed is 0.4 m/s.
The BCXH60A uses a 0.75 kW motor with a rated voltage of 380 V / 50 Hz.
Yes. It can be positioned between bagging, sterilization, inoculation, incubation, fruiting, and other production stages as a continuous mushroom-bag transportation section. Multiple conveyor sections can also be incorporated into a larger material-handling system.
