Container Mushroom Growing Room – CMGRXH36A
The CMGRXH36A Container Mushroom Growing Room is a customizable controlled-environment cultivation room equipped with humidification, sensors, growing racks, lighting, and an integrated environmental control system to provide stable temperature, humidity, lighting, and gas conditions for different mushroom fruiting stages.
Key Specifications
|
Item |
Specification |
|
Model |
CMGRXH36A |
|
Equipment Type |
Container Mushroom Growing Room |
|
Dimensions |
12.18 × 2.43 × 2.89 m |
|
Weight |
Approx. 6 tons |
|
Main Configuration |
Humidifier, environmental sensors, mushroom growing racks, LED light strips |
|
Control System |
Integrated intelligent environmental control system |
|
Control Methods |
Intelligent control panel / Mobile App |
|
Controlled Parameters |
Light, temperature, humidity, gas conditions / CO₂ concentration |
|
Growing Configuration |
Customized according to mushroom species and cultivation requirements |
|
Application |
Controlled mushroom fruiting and growing |
Working Principle
The container mushroom growing room creates a controlled environment inside a prefabricated cultivation space. Its operating process can be summarized as follows:
Prepare the Cultivation Space

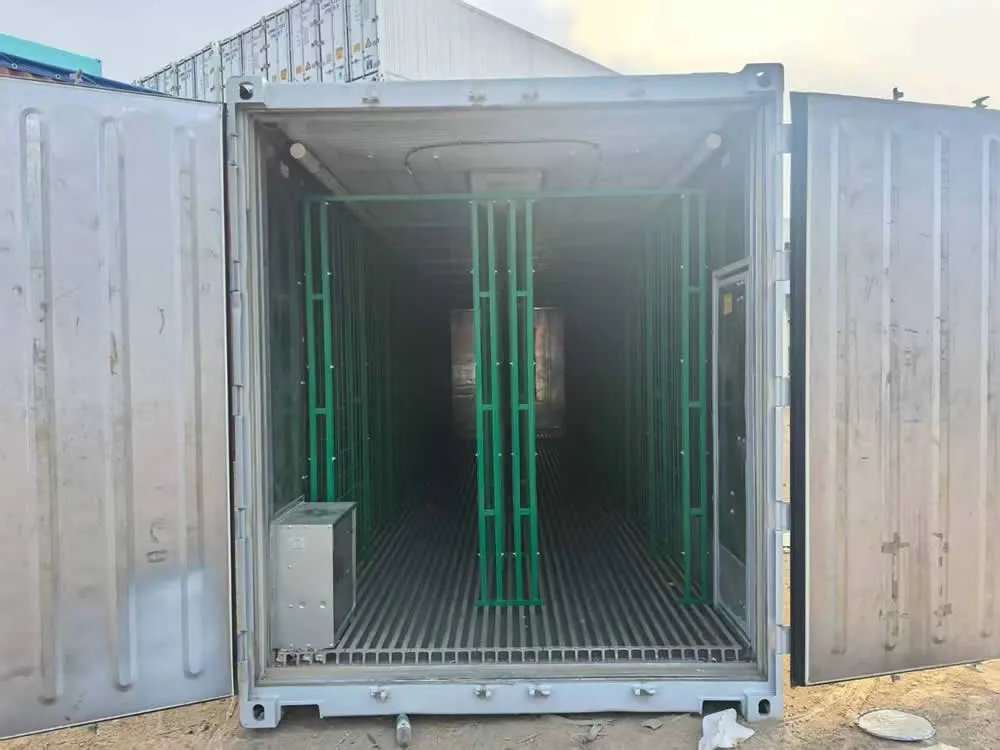

Mushroom cultivation bags, bottles, baskets, or other prepared cultivation units are placed on the internal growing racks after the substrate has completed the required sterilization, inoculation, and incubation stages.
Environmental Monitoring
Sensors continuously monitor key environmental conditions inside the growing room, including temperature, humidity, lighting conditions, and gas-related parameters such as CO₂ concentration.
Humidity Control
The integrated humidification system supplies moisture according to the configured cultivation requirements. This helps maintain the target humidity conditions required during fruiting.
Temperature and Gas Management
The environmental control system coordinates the relevant equipment to maintain suitable temperature and gas conditions. Different cultivation stages can be assigned different environmental parameters.
Lighting Control
The installed light strips provide controllable lighting for mushroom varieties and growth stages that require specific light conditions.
Intelligent Parameter Adjustment
Operators can monitor and adjust environmental parameters through the intelligent integrated control panel or mobile App, allowing the growing environment to be managed according to the selected mushroom species and cultivation stage.
Suitable Raw Materials and Mushroom Types
The CMGRXH36A is primarily a fruiting and growing environment, rather than a machine for preparing mushroom substrate. The cultivation materials placed inside the room can include:
- Mushroom cultivation bags
- Mushroom growing bottles
- Cultivation baskets
- Other compatible mushroom cultivation containers
The room can be customized according to the cultivation requirements of different mushroom varieties. Typical applications can include:
- Oyster mushroom
- Shiitake mushroom
- Wood ear mushroom / Black fungus
- King oyster mushroom
- Lion’s mane mushroom
- Enoki mushroom
- Other edible and specialty mushrooms with compatible controlled-environment cultivation requirements
Because the system is customizable, the final configuration should be selected according to the mushroom species, cultivation method, fruiting temperature, humidity requirements, lighting requirements, and gas-management requirements.
Capacity / Production Scale & Automation Level
The 12.18 × 2.43 × 2.89 m container provides a dedicated cultivation space for commercial mushroom production. Its actual production capacity is not defined simply by the room’s dimensions; it depends on the mushroom species, cultivation bag or bottle size, rack configuration, number of cultivation layers, stocking density, and cultivation cycle.
The room is suitable for growers who want to establish a controlled mushroom fruiting area without constructing a conventional fixed cultivation building.
In terms of automation, CMGRXH36A provides a high level of environmental-control automation. Sensors monitor cultivation conditions, while the integrated control system allows operators to manage environmental parameters through a control panel or mobile App. Different settings can be applied according to different mushroom growth stages.
Integration with Other Mushroom Equipment
Upstream Equipment
Typical upstream equipment can include:
- Substrate Mixer– prepares mushroom growing substrate
- Mushroom Bagging Machine– fills cultivation bags
- Bottle Filling Machine– prepares bottle-based cultivation containers
- Steam Sterilizer / Autoclave– sterilizes cultivation substrate
- Inoculation Machine– performs solid or liquid spawn inoculation
- Incubation Racks / Incubation Room– supports mycelium colonization
Downstream Equipment
After fruiting and harvesting, the mushrooms can be transferred to:
- Mushroom Cleaning Equipment
- Sorting and Grading Equipment
- Mushroom Dryer
- Packaging Equipment
- Weighing and Packing Equipment
- Cold Storage or Finished-Product Storage
This makes the container growing room suitable as the fruiting-stage section of a complete mushroom cultivation line.
Service & FAQ
Installation & Service
For commercial projects, installation and technical services can be provided according to the project configuration, including:
- Installation Support
- Commissioning
- Operator Training
- Spare Parts Supply
- Technical Support
- Environmental Parameter Setup
- After-Sales Service
Because each growing room can be customized for a particular mushroom species, the control parameters and internal configuration should be confirmed before production and installation.
FAQ
Yes. CMGRXH36A is equipped with sensors and an intelligent environmental control system for managing key cultivation conditions. The exact control configuration depends on the project requirements.
Yes. The supplied configuration supports environmental adjustment through an intelligent integrated control panel or mobile App.
Yes. The internal configuration can be customized according to the mushroom species, including growing racks, humidification configuration, lighting, sensors, and environmental-control requirements.
The exact quantity depends on the cultivation container size, rack design, number of layers, and stocking density. The internal rack configuration can be designed according to the customer’s production requirements.
Installation support, commissioning, operator training, spare-parts supply, technical support, and after-sales service can be arranged according to the equipment configuration and project requirements.
